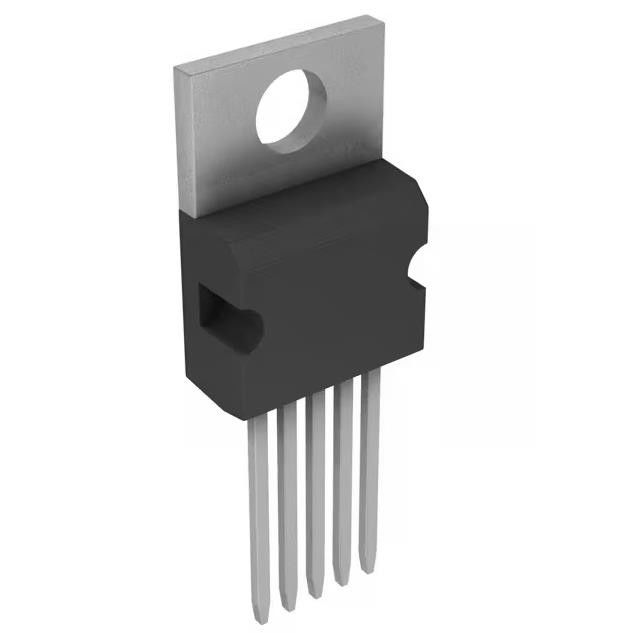

LM2576HVT-ADJ/NOPB Integrated Circuit Chip Reg Buck Adj 3a To220-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM2576HVT-ADJ/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Configuration: | Positive | Topology: | Buck |
|---|---|---|---|
| Output Type: | Adjustable | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 4V | Voltage - Input (Max): | 60V |
| Voltage - Output (Min/Fixed): | 1.23V | Voltage - Output (Max): | 57V |
Product Description
LM2576HVT-ADJ/NOPB Transistor Ic Chip Ic Reg Buck Adj 3a To220-5
Buck Switching Regulator IC Positive Adjustable 1.23V 1 Output 3A TO-220-5
Specifications of LM2576HVT-ADJ/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Package | Tube |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 60V |
| Voltage - Output (Min/Fixed) | 1.23V |
| Voltage - Output (Max) | 57V |
| Current - Output | 3A |
| Frequency - Switching | 52kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
| Base Product Number | LM2576 |
Features of LM2576HVT-ADJ/NOPB
• Newer products available:
– LMR51430 4.5 to 36-V, 3-A, 500-kHz and 1.1- MHz synchronous converter
– LM76003 3.5 to 60-V, 3.5-A, 300-kHz to 2.2- MHz synchronous converter
• For faster time to market:
– TLVM13630 3 to 36-V, 3-A, 200-kHzto 2.2-MHz power module
• 3.3-V, 5-V, 12-V, 15-V, and adjustable output versions
• Adjustable version output voltage range,1.23 V to 37 V (57 V for HV version) ±4% maximum over line and load conditions
• Specified 3-A output current
• Wide input voltage range: 40 V Up to 60 V for HV version
• Requires only four external components
• 52-kHz fixed-frequency internal oscillator
• TTL-shutdown capability, low-powerstandby mode
• High efficiency
• Uses readily available standard inductors
• Create a custom design using the LMR33630 or LM76003 with the WEBENCH® Power Designer
Applications of LM2576HVT-ADJ/NOPB
• Motor drives
• Merchant network and server PSU
• Appliances
• Test and measurement equipment
Environmental & Export Classifications of LM2576HVT-ADJ/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
