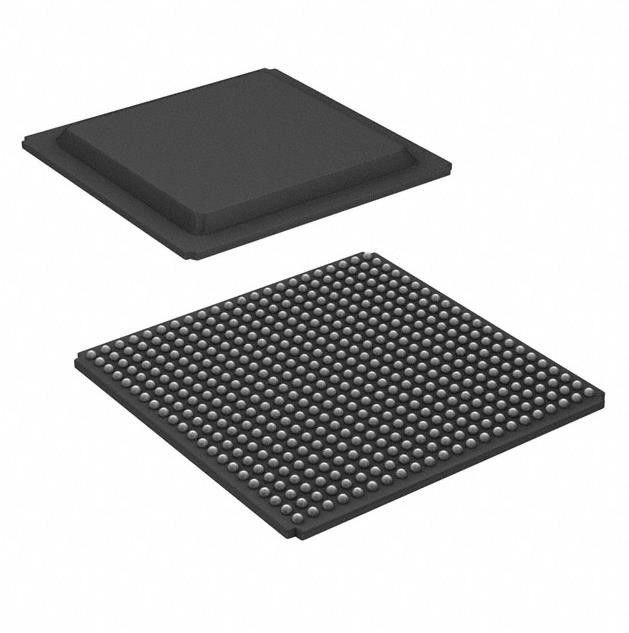

XC6VLX130T-1FFG484I Common Ic Chips Fpga 240 I/O 484fbga 0.95V ~ 1.05V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | XC6VLX130T-1FFG484I |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tray | Product Status: | Active |
|---|---|---|---|
| Digi-Key Programmable: | Not Verified | Number Of LABs/CLBs: | 10000 |
| Number Of Logic Elements/Cells: | 128000 | Total RAM Bits: | 9732096 |
| Number Of I/O: | 240 | Voltage - Supply: | 0.95V ~ 1.05V |
Product Description
XC6VLX130T-1FFG484I Transistor Ic Chip Ic Fpga 240 I/O 484fbga
Virtex®-6 LXT Field Programmable Gate Array (FPGA) IC 240 9732096 128000 484-BBGA
Specifications of XC6VLX130T-1FFG484I
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| FPGAs (Field Programmable Gate Array) | |
| Mfr | AMD |
| Series | Virtex®-6 LXT |
| Package | Tray |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Number of LABs/CLBs | 10000 |
| Number of Logic Elements/Cells | 128000 |
| Total RAM Bits | 9732096 |
| Number of I/O | 240 |
| Voltage - Supply | 0.95V ~ 1.05V |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Package / Case | 484-BBGA |
| Supplier Device Package | 484-FBGA (23x23) |
| Base Product Number | XC6VLX130 |
Virtex-6 FPGA Electrical Characteristics of XC6VLX130T-1FFG484I
Virtex®-6 FPGAs are available in -3, -2, -1, and -1L speed grades, with -3 having the highest performance. Virtex-6 FPGA DC and AC characteristics are specified in commercial, extended, industrial, and military temperature ranges. Unless noted, the Virtex-6Q FPGA DC and AC characteristics are equivalent to the commercial specifications. Except for the operating temperature range or unless otherwise noted, all the DC and AC electrical parameters are the same for a particular speed grade (that is, the timing characteristics of a -1 speed grade industrial device are the same as for a -1 speed grade commercial device). However, only selected speed grades and/or devices are available in the extended, industrial, or military temperature ranges. All supply voltage and junction temperature specifications are representative of worst-case conditions. The parameters included are common to popular designs and typical applications.
Important Note of XC6VLX130T-1FFG484I
Typical values for quiescent supply current are specified at nominal voltage, 85°C junction temperatures (Tj ). Xilinx recommends analyzing static power consumption at Tj = 85°C because the majority of designs operate near the high end of the commercial temperature range. Quiescent supply current is specified by speed grade for Virtex-6 devices. Use the Xilinx Power Estimator (XPE) spreadsheet tool (download at http://www.xilinx.com/power) to calculate static power consumption for conditions other than those specified in Table 4.
Environmental & Export Classifications of XC6VLX130T-1FFG484I
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 4 (72 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991D |
| HTSUS | 8542.39.0001 |
