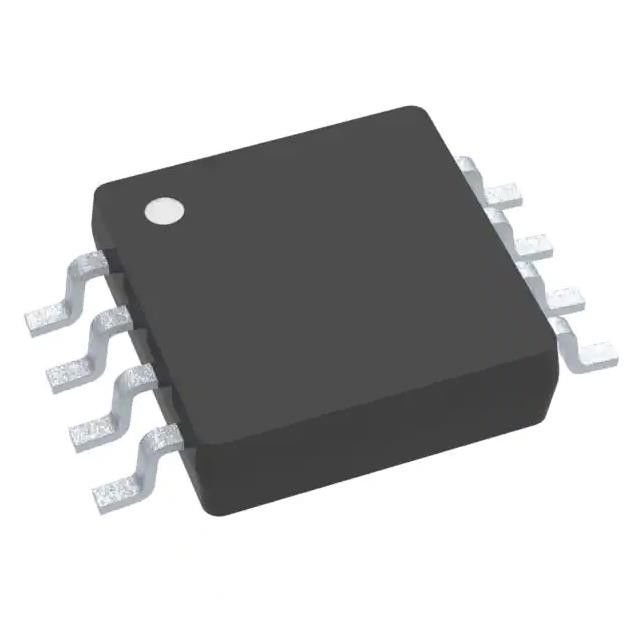

INA301A1IDGKR Integrated Circuit Ic Chip Current Monitor 8vssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | INA301A1IDGKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Current Monitor |
|---|---|---|---|
| Sensing Method: | High/Low-Side | Voltage - Input: | 0V ~ 36V |
| Operating Temperature: | -40°C ~ 125°C | Mounting Type: | Surface Mount |
| Base Product Number: | INA301 | Supplier Device Package: | 8-VSSOP |
Product Description
INA301A1IDGKR Integrated Circuit Ic Chip Current Monitor 8vssop
Current Monitor Regulator High/Low-Side 8-VSSOP
Specifications of LM2936HVMAX-5.0/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Current Regulation/Management | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Current Monitor |
| Sensing Method | High/Low-Side |
| Accuracy | - |
| Voltage - Input | 0V ~ 36V |
| Current - Output | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | INA301 |
Features of LM2936HVMAX-5.0/NOPB
• Wide Common-Mode Input Range: 0 V to 36 V
• Dual Output: Amplifier and Comparator Output
• High Accuracy Amplifier:
– Offset Voltage: 35 µV (Max)
– Offset Voltage Drift: 0.5 µV/°C (Max)
– Gain Error: 0.1% (Max)
– Gain Error Drift: 10 ppm/°C
• Available Amplifier Gains:
– INA301A1: 20 V/V
– INA301A2: 50 V/V
– INA301A3: 100 V/V
• Programmable Alert Threshold Set Through a Single Resistor
• Total Alert Response Time: 1 µs
• Open-Drain Output With Latching Mode
• Package: VSSOP-8
Applications of LM2936HVMAX-5.0/NOPB
• Overcurrent Protection
• Power-Supply Protection
• Circuit Breakers
• Computers and Servers
• Telecom Equipment
• Battery Management
Environmental & Export Classifications of LM2936HVMAX-5.0/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
