IRLML5203TRPBF IC Chip P-Channel 30 V 3A 1.25W Surface Mount Micro3™ / SOT-23
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | IRLML5203TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| FET Type: | P-Channel | Drain To Source Voltage (Vdss): | 30 V |
|---|---|---|---|
| Current - Continuous Drain (Id) @ 25°C: | 3A (Ta) | Rds On (Max) @ Id, Vgs: | 98mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id: | 2.5V @ 250µA | Gate Charge (Qg) (Max) @ Vgs: | 14 NC @ 10 V |
| High Light: | IRLML5203TRPBF IC Chip,P Channel IRLML5203TRPBF,3A 1.25W Surface Mount Circuit Chip |
||
Product Description

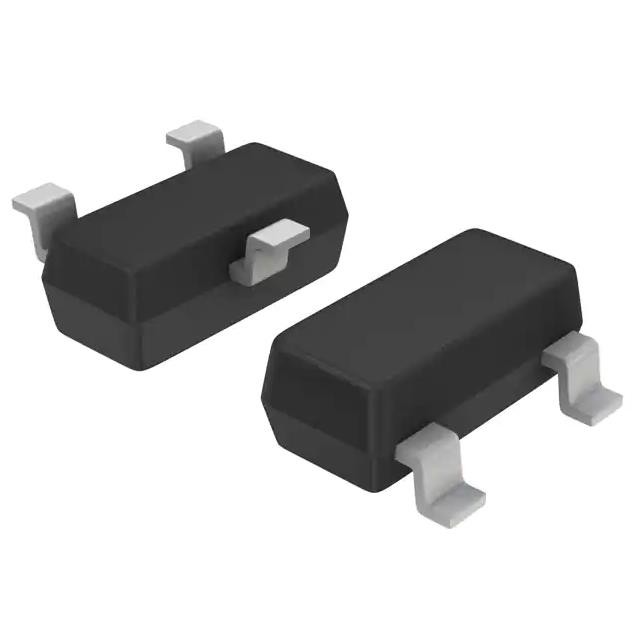

IRLML5203TRPBF IC Chip P-Channel 30 V 3A 1.25W Surface Mount Micro3™ / SOT-23
Features of IRLML5203TRPBF
Ultra Low On-Resistance
P-Channel MOSFET
Surface Mount
Available in Tape & Reel
Low Gate Charge
Lead-Free
RoHS Compliant, Halogen-Free
Product Attributes of IRLML5203TRPBF
|
Product
|
IRLML5203TRPBF
|
|
FET Type
|
P-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
30 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
3A (Ta)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
4.5V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
98mOhm @ 3A, 10V
|
|
Vgs(th) (Max) @ Id
|
2.5V @ 250µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
14 nC @ 10 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
510 pF @ 25 V
|
|
FET Feature
|
-
|
|
Power Dissipation (Max)
|
1.25W (Ta)
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
Micro3™/SOT-23
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
Base Product Number
|
IRLML5203
|
Environmental & Export Classifications of IRLML5203TRPBF
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
Description of IRLML5203TRPBF
These P-channel MOSFETs from International Rectifier utilize
advanced processing techniques to achieve the extremely low
on-resistance per silicon area. This benefit provides the
designer with an extremely efficient device for use in battery
and load management applications.
A thermally enhanced large pad leadframe has been
incorporated into the standard SOT-23 package to produce a
HEXFET Power MOSFET with the industry's smallest footprint.
This package, dubbed the Micro3TM, is ideal for applications
where printed circuit board space is at a premium. The low
profile (<1.1mm) of the Micro3 allows it to fit easily into
extremely thin application environments such as portable
electronics and PCMCIA cards. The thermal resistance and
power dissipation are the best available.
