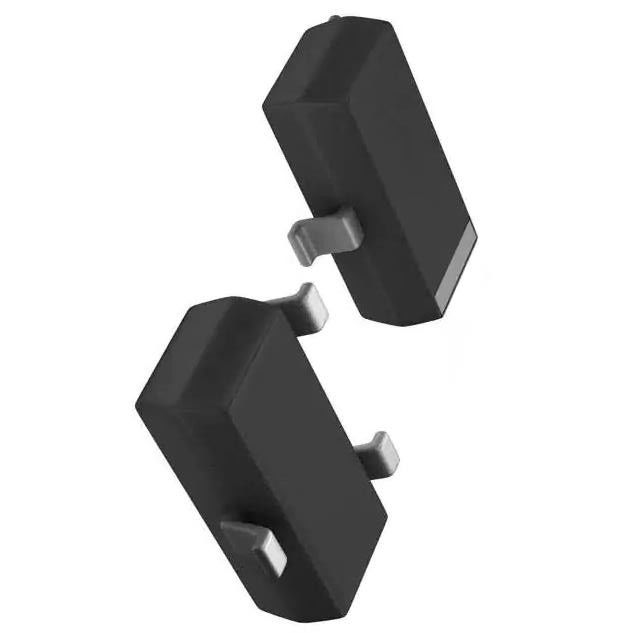

FDN358P Transistor Integrated Circuit P Channel 30V 1.5A 500mW Sot23 3 Package
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | FDN358P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| FDN335N Transistor IC Chip P-Channel 20 V 1.7A 1W Surface Mount SOT-23: | 30 V | Current - Continuous Drain (Id) @ 25°C: | 1.5A (Ta) |
|---|---|---|---|
| Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V | Rds On (Max) @ Id, Vgs: | 125mOhm @ 1.5A, 10V |
| Gate Charge (Qg) (Max) @ Vgs: | 5.6 NC @ 10 V | Vgs (Max): | ±20V |
| High Light: | P Channel FDN358P,FDN358P 30V 1.5A,Sot23 3 Package Transistor Integrated Circuit |
||
Product Description
FDN358P Transistor IC Chip P-Channel 20 V 1.7A 1W Surface Mount SOT-23
FDN358P P-Channel 30 V 1.5A (Ta) 500mW (Ta) Surface Mount SOT-23-3
Features of FDN358P
–1.5 A, –30 V. RDS(ON) = 125 mΩ @ VGS = –10 V RDS(ON) = 200 mΩ @ VGS = –4.5 V
• Low gate charge (4 nC typical)
• High performance trench technology for extremely low RDS(ON) .
• High power version of industry Standard SOT-23 package. Identical pin-out to SOT-23 with 30% higher power handling capability.
Product Attributes of FDN358P
|
Product
|
FDN358P
|
|
FET Type
|
P-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
30 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
1.5A (Ta)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
4.5V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
125mOhm @ 1.5A, 10V
|
|
Vgs(th) (Max) @ Id
|
3V @ 250µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
5.6 nC @ 10 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
182 pF @ 15 V
|
|
FET Feature
|
-
|
|
Power Dissipation (Max)
|
500mW (Ta)
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
SOT-23-3
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
Base Product Number
|
FDN358
|
Environmental & Export Classifications of FDN358P
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0095 |
