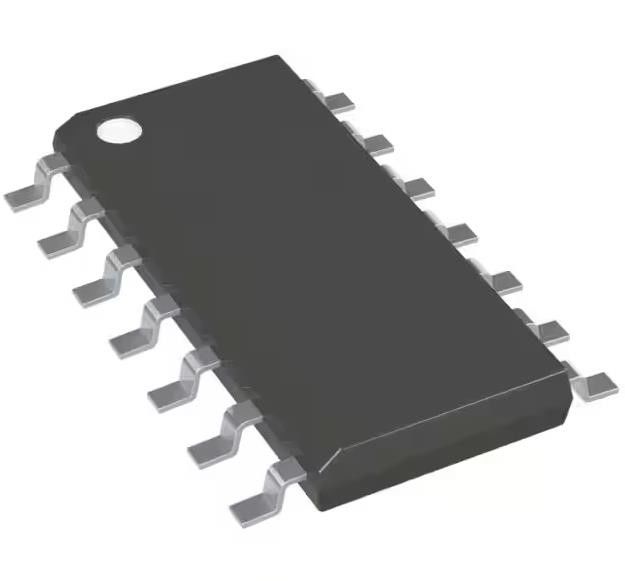

PIC16F676-I/SL PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 1.75KB FLASH 14-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PIC16F676-I/SL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Core Processor: | PIC | Core Size: | 8-Bit |
|---|---|---|---|
| Speed: | 20MHz | Connectivity: | - |
| Peripherals: | Brown-out Detect/Reset, POR, WDT | Number Of I/O: | 12 |
| Program Memory Size: | 1.75KB (1K X 14) | Program Memory Type: | FLASH |
| RAM Size: | 128 X 8 | Voltage - Supply (Vcc/Vdd): | 2V ~ 5.5V |
Product Description
PIC16F676-I/SL PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 1.75KB FLASH 14-SOIC
Specifications of PIC16F676-I/SL
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Microchip Technology |
| Series | PIC® 16F |
| Package | Tube |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Number of I/O | 12 |
| Program Memory Size | 1.75KB (1K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 64 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | PIC16F676 |
Features of PIC16F676-I/SL
• Internal and External Oscillator Options
- Precision Internal 4 MHz oscillator factory calibrated to ±1%
- External Oscillator support for crystals and resonators
- 5 s wake-up from Sleep, 3.0V, typical
• Power-Saving Sleep mode
• Wide Operating Voltage Range – 2.0V to 5.5V
• Industrial and Extended Temperature Range
• Low-Power Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Brown-out Detect (BOD)
• Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation
• Multiplexed MCLR/Input-pin
• Interrupt-on-Pin Change
• Individual Programmable Weak Pull-ups
• Programmable Code Protection
• High Endurance Flash/EEPROM Cell
- 100,000 write Flash endurance
- 1,000,000 write EEPROM endurance
- Flash/data EEPROM retention: > 40 years
Applications of PIC16F676-I/SL
This document contains device specific information for the PIC16F630/676.
Environmental & Export Classifications of PIC16F676-I/SL
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
