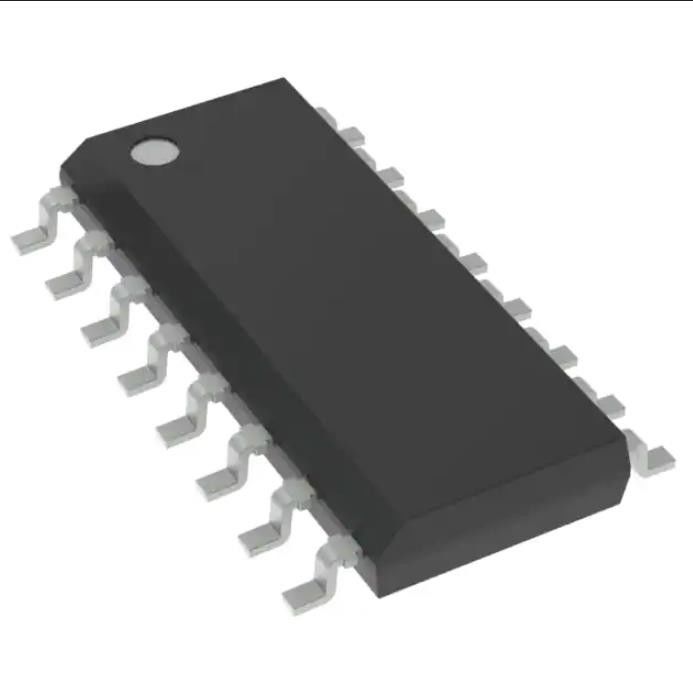

ST7FLITE09M6TR 16SO Microcontroller IC MCU 8BIT 1.5KB FLASH
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ST7FLITE09M6TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Obsolete | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Core Processor: | ST7 | Core Size: | 8-Bit |
| Speed: | 8MHz | Connectivity: | SPI |
| Peripherals: | LVD, POR, PWM, WDT | Number Of I/O: | 13 |
| High Light: | ST7FLITE09M6TR Microcontroller IC,IC MCU 8BIT 1.5KB,16SO Microcontroller IC MCU |
||
Product Description
ST7FLITE09M6TR Current Sense Resistors Ic Mcu 8bit 1.5kb Flash 16so
ST7 ST7 Microcontroller IC 8-Bit 8MHz 1.5KB (1.5K x 8) FLASH 16-SO
Specifications of ST7FLITE09M6TR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | STMicroelectronics |
| Series | ST7 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Obsolete |
| Digi-Key Programmable | Not Verified |
| Core Processor | ST7 |
| Core Size | 8-Bit |
| Speed | 8MHz |
| Connectivity | SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 13 |
| Program Memory Size | 1.5KB (1.5K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Data Converters | A/D 5x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
| Base Product Number | ST7FL |
Features of ST7FLITE09M6TR
– 1K or 1.5 Kbytes single voltage Flash Program memory with read-out protection, In-Circuit and In-Application Programming (ICP and IAP). 10 K write/erase cycles guaranteed, data retention: 20 years at 55 °C.
– 128 bytes RAM.
– 128 bytes data EEPROM with read-out protection. 300K write/erase cycles gua
Applications of ST7FLITE09M6TR
Instruction Set
– 8-bit data manipulation
– 63 basic instructions with illegal opcode detection
– 17 main addressing modes
– 8 x 8 unsigned multiply instruction
Environmental & Export Classifications of ST7FLITE09M6TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
