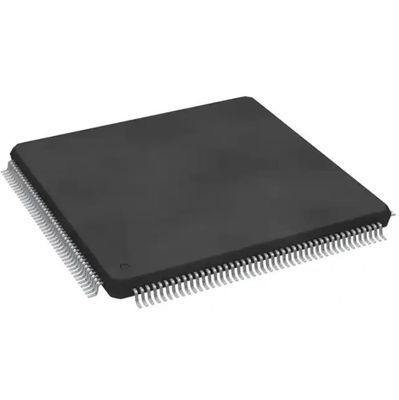

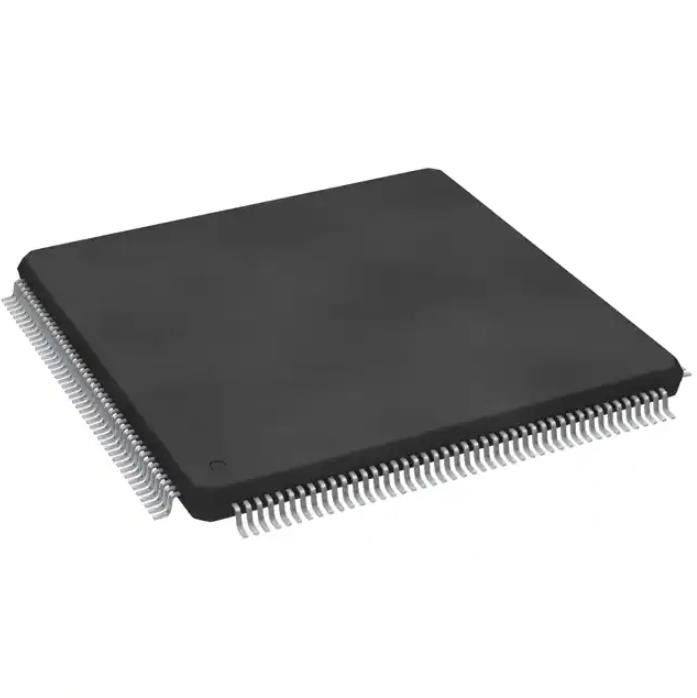

32BIT 1.5MB 176LQFP Microcontroller IC SPC560C50L3B4E0X

• e200z4d, 32-bit Power Architecture®

– Up to 120 MHz and 200 MIPs operation

• e200z0h, 32-bit Power Architecture

– Up to 80 MHz and 75 MIPs operation

• Memory

– Up to 3 MByte on-chip Flash with ECC

– Up to 256 KByte on-chip SRAM with ECC

– 64KByte on-chip Data Flash with ECC

– 16-entry memory protection unit (MPU)

– User selectable Memory BIST

• Interrupts

– 255 interrupt sources with 16 priority levels

– Up to 54 ext. IRQ including 30 wake-up

• GPIOs: from 147 (LQFP176) to 199 (LBGA256)

• System timer units

– 8-ch. 32-bit periodic interrupt timer (PIT)

– 4-channel 32-bit system timer (STM)

– Safety System Watchdog Timer (SWT)

– Real-time clock timer (RTC/API)

• eMIOS, 16-bit counter timed I/O units

– Up to 64 channels with PWM/MC/IC/OC

• Two ADC (10-bit and 12-bit)

– Up to 62 channels extendable to 90 ch.

– Multiple Analog Watchdog

• Dedicated diagnostic features for lighting

– Advanced shiffted PWM generation

– ADC conversion synchronized on PWM

• Communication interfaces

– Up to 6 FlexCAN with 64 buffers each

– Up to 10 LINFlex/UART channels

– Up to 8 buffered DSPI channels

– I2C interface

– One FleyRay (dual-ch.) with 128 buffers

– Fast Ethernet Controller

• Cryptographic Services Engine (CSE)

– AES-128 en/decryption, CMAC auth.

– Secured device boot mode

• 32-ch. eDMA with multiple request sources

• Clock generation

– 4 to 40 MHz main oscillator

– 16 MHz internal RC oscillator

– Software-controlled FMPLL

– 128 kHz internal RC oscillator

– 32 kHz auxiliary oscillator

– Clock Monitoring Unit (CMU)

• Low power capabilities

– Ultra low power STANDBY

– CAN Sampler to store CAN ID in STBY

– Fast wake-up and exectute from RAM

• Exhaustive debugging capability

– Nexus 3+ interface on LBGA256 only

– Nexus 1 on all devices

• Voltage supply

– Single 5 V or 3.3 V supply

– On-chip Vreg with external ballast transitor

• Operating temperature range -40 to 125 °C
