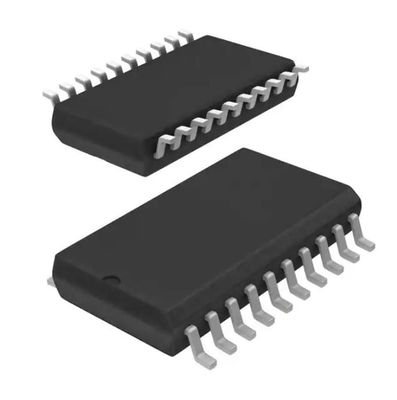

20SOIC 8BIT Microcontroller IC MCU 4KB FLASH ST7FLIT15BF1M6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ST7FLIT15BF1M6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | STMicroelectronics | Series: | ST7 |
|---|---|---|---|
| Package: | Tube | Product Status: | Not For New Designs |
| Digi-Key Programmable: | Not Verified | Core Processor: | ST7 |
| Core Size: | 8-Bit | Speed: | 8MHz |
| High Light: | 20SOIC 8BIT Microcontroller IC,IC MCU 4KB FLASH,4KB FLASH ST7FLIT15BF1M6 |
||
Product Description
ST7FLIT15BF1M6 Current Sense Resistors Ic Mcu 8bit 4kb Flash 20soic
ST7 ST7 Microcontroller IC 8-Bit 8MHz 4KB (4K x 8) FLASH 20-SO
Specifications of ST7FLIT15BF1M6
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | STMicroelectronics |
| Series | ST7 |
| Package | Tube |
| Product Status | Not For New Designs |
| Digi-Key Programmable | Not Verified |
| Core Processor | ST7 |
| Core Size | 8-Bit |
| Speed | 8MHz |
| Connectivity | SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 17 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 7x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
| Base Product Number | ST7FL |
Features of ST7FLIT15BF1M6
– up to 4 Kbytes single voltage extended Flash (XFlash) Program memory with read-out protection, In-Circuit Programming and In-Application programming (ICP and IAP). 10K write/ erase cycles guaranteed, data retention: 20 years at 55°C.
– 256 bytes RAM
– 128 bytes data EEPROM with read-out protection. 300K write/erase cycles g
Applications of ST7FLIT15BF1M6
– 8-bit data manipulation
– 63 basic instructions with illegal opcode detection
– 17 main addressing modes
– 8 x 8 unsigned multiply instructions
Environmental & Export Classifications of ST7FLIT15BF1M6
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
