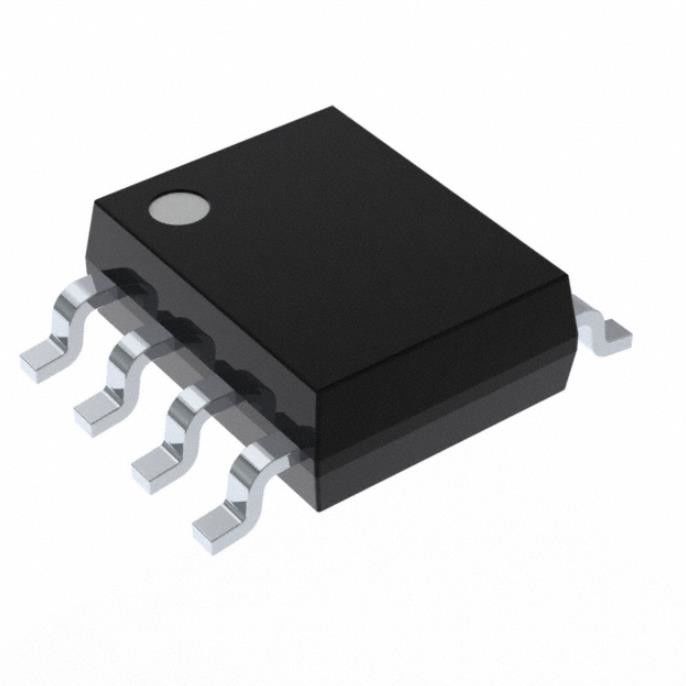

64MBIT 8SOIJ FLASH Memory IC SST26VF064BT-104I SM SPI/QUAD
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SST26VF064BT-104I/SM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Verified |
|---|---|---|---|
| Memory Type: | Non-Volatile | Memory Format: | FLASH |
| Technology: | FLASH | Memory Size: | 64Mbit |
| Memory Organization: | 8M X 8 | Memory Interface: | SPI - Quad I/O |
| High Light: | 8SOIJ FLASH Memory IC,SST26VF064BT-104I SM,64MBIT Microcontroller IC |
||
Product Description
SST26VF064BT-104I/SM Current Sense Resistors Ic Flash 64mbit Spi/Quad 8soij
FLASH Memory IC 64Mbit SPI - Quad I/O 104 MHz 8-SOIJ
Specifications of SST26VF064BT-104I/SM
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | Microchip Technology |
| Series | SST26 SQI® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Verified |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH |
| Memory Size | 64Mbit |
| Memory Organization | 8M x 8 |
| Memory Interface | SPI - Quad I/O |
| Clock Frequency | 104 MHz |
| Write Cycle Time - Word, Page | 1.5ms |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 8-SOIJ |
| Base Product Number | SST26VF064 |
Features of SST26VF064BT-104I/SM
• Single Voltage Read and Write Operations:
- 2.7V-3.6V or 2.3V-3.6V
• Serial Interface Architecture:
- Nibble-wide multiplexed I/O’s with SPI-like serial command structure
- Mode 0 and Mode 3
- x1/x2/x4 Serial Peripheral Interface (SPI) Protocol
• High-Speed Clock Frequency:
- 2.7V-3.6V: 104 MHz maximum
- 2.3V-3.6V: 80 MHz maximum
• Burst Modes:
- Continuous linear burst
- 8/16/32/64-byte linear burst with wrap-around
• Superior Reliability:
- Endurance: 100,000 Cycles (minimum)
- Greater than 100 years data retention
• Low-Power Consumption:
- Active Read current: 15 mA (typical @ 104 MHz)
- Standby Current: 15 µA (typical)
• Fast Erase Time:
- Sector/Block Erase: 18 ms (typical), 25 ms (maximum)
- Chip Erase: 35 ms (typical), 50 ms (maximum)
• Page Program:
- 256-bytes per page in x1 or x4 mode
• End-of-Write Detection:
- Software polling the BUSY bit in STATUS register
• Flexible Erase Capability:
- Uniform 4-Kbyte sectors
- Four 8-Kbyte top and bottom parameter overlay blocks
- One 32-Kbyte top and bottom overlay block
- Uniform 64-Kbyte overlay blocks
• Write Suspend:
- Suspend Program or Erase operation to access another block/sector
• Software Reset (RST) mode
• Software Protection:
- Individual Block Write Protection with permanent
lock-down capability
- 64-Kbyte blocks, two 32-Kbyte blocks and eight 8-Kbyte parameter blocks
- Read protection on top and bottom 8-Kbyte parameter blocks
• Security ID:
- One-Time-Programmable (OTP) 2-Kbyte, Secure ID
- 64-bit unique, factory pre-programmed identifier
- User-programmable area
• Temperature Range:
- Industrial: -40°C to +85°C
- Industrial Plus: -40°C to +105°C
• Automotive AEC-Q100 Grade 2 and Grade 3
• All devices are RoHS compliant
Applications of SST26VF064BT-104I/SM
The Serial Quad I/O™ (SQI™) family of Flash-memory devices features a six-wire, 4-bit I/O interface that allows for low-power, high-performance operation in a low pin-count package. SST26VF064B/064BA also support full command-set compatibility to traditional Serial Peripheral Interface (SPI) protocol. System designs using SQI Flash devices occupy less board space and ultimately lower system costs. All members of the 26 Series, SQI family are manufactured with proprietary, high-performance CMOS SuperFlash® technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.
Environmental & Export Classifications of SST26VF064BT-104I/SM
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991B1A |
| HTSUS | 8542.32.0071 |
