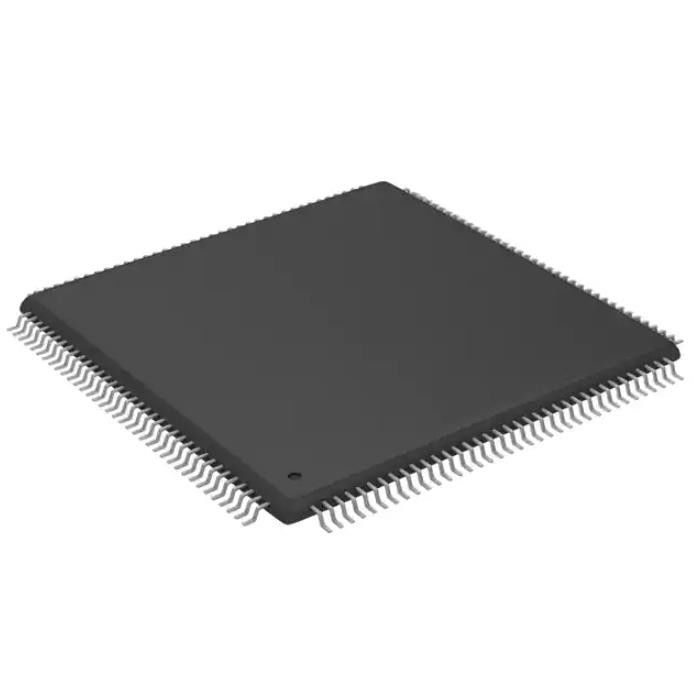

SPC58EC80E5QMC0X MCU Microcontroller IC 32BIT 4MB FLASH 144ETQFP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SPC58EC80E5QMC0X |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Obsolete | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Core Processor: | E200z420 | Core Size: | 32-Bit Dual-Core |
| Speed: | 180MHz | Connectivity: | CANbus, I²C, LINbus, SPI |
| Peripherals: | DMA | Number Of I/O: | 124 |
| High Light: | SPC58EC80E5QMC0X,MCU Microcontroller IC,144ETQFP Microcontroller IC |
||
Product Description
SPC58EC80E5QMC0X Current Sense Resistors Ic Mcu 32bit 4mb Flash 144etqfp
e200z420 Automotive, AEC-Q100, SPC58 Microcontroller IC 32-Bit Dual-Core 180MHz 4MB (4M x 8) FLASH 144-eTQFP (20x20)
Specifications of SPC58EC80E5QMC0X
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | STMicroelectronics |
| Series | Automotive, AEC-Q100, SPC58 |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Digi-Key Programmable | Not Verified |
| Core Processor | e200z420 |
| Core Size | 32-Bit Dual-Core |
| Speed | 180MHz |
| Connectivity | CANbus, I²C, LINbus, SPI |
| Peripherals | DMA |
| Number of I/O | 124 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128K x 8 |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.3V, 5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 144-TQFP Exposed Pad |
| Supplier Device Package | 144-eTQFP (20x20) |
| Base Product Number | SPC58 |
Features of SPC58EC80E5QMC0X
• AEC-Q100 qualified
• High performance e200z420n3 dual core
– 32-bit Power Architecture technology CPU
– Core frequency as high as 180 MHz
– Variable Length Encoding (VLE)
• 4224 KB (4096 KB code flash + 128 KB data flash) on-chip flash memory: supports read during program and erase operations, and multiple blocks allowing EEPROM emulation
• 176 KB HSM dedicated flash memory (144 KB code + 32 KB data)
• 384 KB on-chip general-purpose SRAM (in addition to 128 KB core local data RAM: 64 KB included in each CPU)
• Multi-channel direct memory access controller (eDMA) with 64 channels
• 1 interrupt controller (INTC)
• Comprehensive new generation ASIL-B safety concept
– ASIL-B of ISO 26262
– FCCU for collection and reaction to failure notifications
– Memory Error Management Unit (MEMU) for collection and reporting of error events in memories
– Cyclic redundancy check (CRC) unit
• Crossbar switch architecture for concurrent access to peripherals, Flash, or RAM from multiple bus masters with end-to-end ECC
• Body cross triggering unit (BCTU)
– Triggers ADC conversions from any eMIOS channel
– Triggers ADC conversions from up to 2 dedicated PIT_RTIs
• Enhanced modular IO subsystem (eMIOS): up to 64 timed I/O channels with 16-bit counter resolution
• Enhanced analog-to-digital converter system with:
– 3 independent fast 12-bit SAR analog converters
– 1 supervisor 12-bit SAR analog converter
– 1 10-bit SAR analog converter with STDBY mode support
• Communication interfaces
– 18 LINFlexD modules
– 8 deserial serial peripheral interface (DSPI)modules
– 8 MCAN interfaces with advanced shared memory scheme and ISO CAN-FD support
– Dual-channel FlexRay controller
– 1 ethernet controller 10/100 Mbps, compliant IEEE 802.3-2008
• Low power capabilities
– Versatile low power modes
– Ultra low power standby with RTC
– Smart Wake-up Unit for contact monitoring
– Fast wakeup schemes
• Dual phase-locked loops with stable clock domain for peripherals and FM modulation domain for computational shell
Applications of SPC58EC80E5QMC0X
• Nexus development interface (NDI) per IEEE-ISTO 5001-2003 standard, with some support for 2010 standard
• Boot assist Flash (BAF) supports factory programming using a serial bootload through the asynchronous CAN or LIN/UART
• Junction temperature range -40 °C to 150 °C
Environmental & Export Classifications of SPC58EC80E5QMC0X
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| REACH Status | REACH Unaffected |
| ECCN | OBSOLETE |
| HTSUS | 0000.00.0000 |
Want to Know more details about this product
