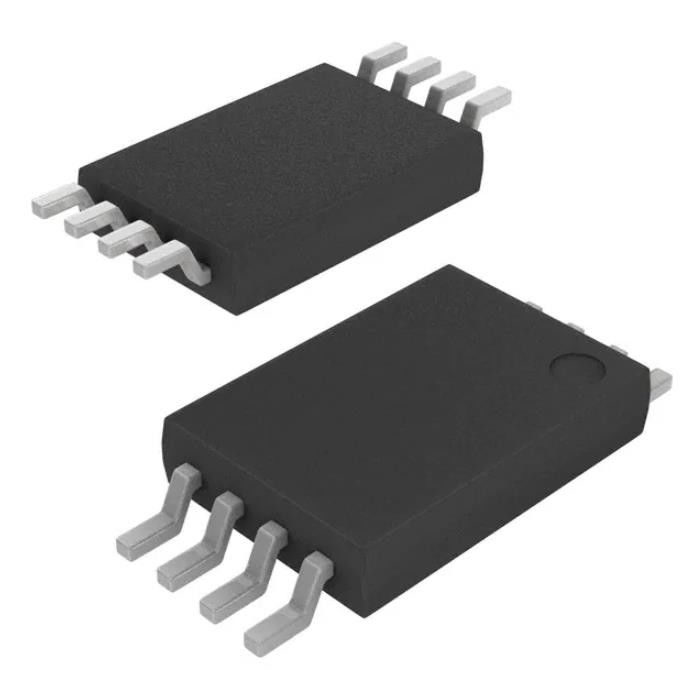

13.56MHZ 8TSSOP RFID Transponder IC ST25DV16K-IER6T3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ST25DV16K-IER6T3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Type: | RFID Transponder |
|---|---|---|---|
| Frequency: | 13.56MHz | Standards: | ISO 15693 |
| Interface: | I²C | Voltage - Supply: | 1.8V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C | Mounting Type: | Surface Mount |
| High Light: | 13.56MHZ RFID Transponder IC,8TSSOP RFID Transponder IC,ST25DV16K-IER6T3 |
||
Product Description
ST25DV16K-IER6T3 Current Sense Resistors Ic Rfid Transp 13.56mhz 8tssop
RFID Transponder IC 13.56MHz ISO 15693 I²C 1.8V ~ 5.5V 8-TSSOP (0.173", 4.40mm Width)
Specifications of ST25DV16K-IER6T3
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RFID, RF Access, Monitoring ICs | |
| Mfr | STMicroelectronics |
| Series | ST25D |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | RFID Transponder |
| Frequency | 13.56MHz |
| Standards | ISO 15693 |
| Interface | I²C |
| Voltage - Supply | 1.8V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
| Base Product Number | ST25 |
Features of ST25DV16K-IER6T3
I2C interface
• Two-wire I2C serial interface supports 1 MHz protocol
• Single supply voltage: 1.8 to 5.5 V
• Multiple byte programming (up to 256 bytes)
Contactless interface
• Based on ISO/IEC 15693
• NFC Forum Type 5 tag, certified by the NFC Forum
• Supports all ISO/IEC 15693 modulations, coding, sub-carrier modes and data rates
• Custom fast read access up to 53 Kbit/s
• Single and multiple blocks read (same for extended commands)
• Single and multiple (up to 4) blocks write (same for extended commands)
• Internal tuning capacitance: 28.5 pF
Memory
• Up to 64 kbits of EEPROM (depending on version)
• I2C interface accesses bytes
• RF interface accesses blocks of 4 bytes
• Write time:
– From I2C: typical 5 ms for 1 byte
– From RF: typical 5 ms for 1 block
• Data retention: 40 years
• Write cycles endurance:
– 1 million at 25 °C
– 600 k at 85 °C
– 500 k at 105 °C
– 400 k at 125 °C
Fast transfer mode
• Fast data transfer between I2C and RF interfaces
• Half-duplex 256-byte dedicated buffer
Energy harvesting
• Analog output pin to power external components
Data protection
• User memory: one to four configurable areas, protectable in read and/or write by three 64-bit passwords in RF, and one 64-bit password in I2C
• System configuration: protected in write by one 64-bit password in RF, and one 64-bit password in I2C
Applications of ST25DV16K-IER6T3
• Range 6:
– From -40 to 85 °C
• Range 8:
– From -40 to 105 °C (UDFPN8 and UDFPN12 only)
– From -40 to 125 °C (SO8N and TSSOP8 only, 105 °C max on RF interface)
Environmental & Export Classifications of ST25DV16K-IER6T3
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.32.0051 |
