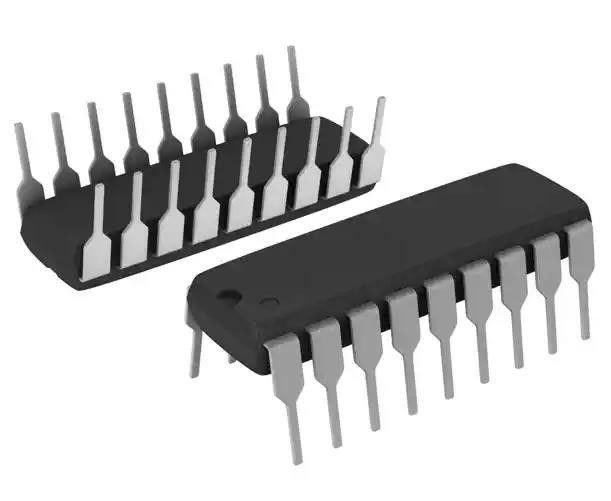

PIC16F628A-I/P PIC 16F Microcontroller IC 8-Bit 20MHz 3.5KB FLASH 18-PDIP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PIC16F628A-I/P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Core Processor: | PIC | Core Size: | 8-Bit |
|---|---|---|---|
| Speed: | 20MHz | Connectivity: | UART/USART |
| Peripherals: | Brown-out Detect/Reset, POR, PWM, WDT | Number Of I/O: | 16 |
| Program Memory Size: | 3.5KB (2K X 14) | Program Memory Type: | FLASH |
| RAM Size: | 128 X 8 | Voltage - Supply (Vcc/Vdd): | 3V ~ 5.5V |
Product Description
PIC16F628A-I/P PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 3.5KB FLASH 18-PDIP
Specifications of PIC16F628A-I/P
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Microchip Technology |
| Series | PIC® 16F |
| Package | Tube |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 3.5KB (2K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 224 x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 18-DIP (0.300", 7.62mm) |
| Supplier Device Package | 18-PDIP |
| Base Product Number | PIC16F628 |
Features of PIC16F628A-I/P
• Internal and external oscillator options:
- Precision internal 4 MHz oscillator factory calibrated to ±1%
- Low-power internal 48 kHz oscillator
- External Oscillator support for crystals and resonators
• Power-saving Sleep mode
• Programmable weak pull-ups on PORTB
• Multiplexed Master Clear/Input-pin
• Watchdog Timer with independent oscillator for reliable operation
• Low-voltage programming
• In-Circuit Serial Programming™ (via two pins)
• Programmable code protection
• Brown-out Reset
• Power-on Reset
• Power-up Timer and Oscillator Start-up Timer
• Wide operating voltage range (2.0-5.5V)
• Industrial and extended temperature range
• High-Endurance Flash/EEPROM cell:
- 100,000 write Flash endurance
- 1,000,000 write EEPROM endurance
- 40 year data retention
Applications of PIC16F628A-I/P
The PIC16F627A/628A/648A are 18-pin Flash-based members of the versatile PIC16F627A/628A/648A family of low-cost, high-performance, CMOS, fullystatic, 8-bit microcontrollers.
Environmental & Export Classifications of PIC16F628A-I/P
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
