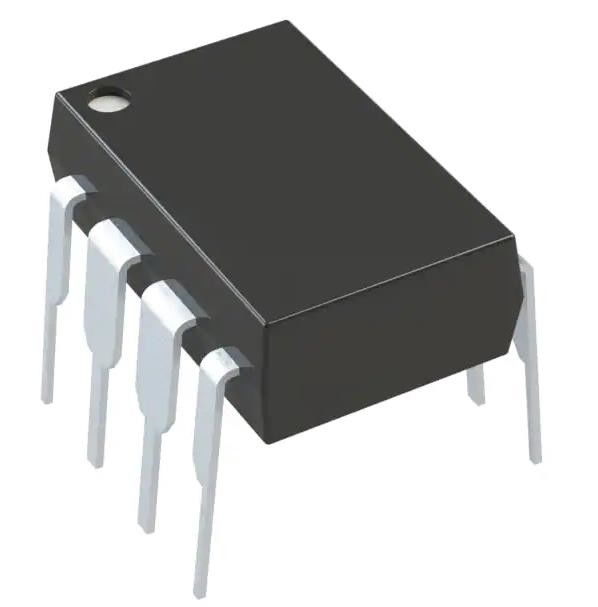

PIC12F675-I/P PIC PIC® 12F Microcontroller IC 8-Bit 20MHz FLASH 8-PDIP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PIC12F675-I/P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Series: | PIC® 12F | Core Processor: | PIC |
|---|---|---|---|
| Core Size: | 8-Bit | Speed: | 20MHz |
| Peripherals: | POR, WDT | Number Of I/O: | 5 |
| Program Memory Size: | 1.75KB (1K X 14) | Program Memory Type: | FLASH |
| RAM Size: | 128 X 8 | Voltage - Supply (Vcc/Vdd): | 2V ~ 5.5V |
Product Description
PIC12F675-I/P PIC PIC® 12F Microcontroller IC 8-Bit 20MHz FLASH 8-PDIP
Specifications of PIC12F675-I/P
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Microchip Technology |
| Series | PIC® 12F |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | POR, WDT |
| Number of I/O | 5 |
| Program Memory Size | 1.75KB (1K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 64 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Base Product Number | PIC12F675 |
Features of PIC12F675-I/P
• Low Supply Voltage Range: 1.8 V to 3.6 V
• Ultra-Low Power Consumption
– Active Mode: 220 µA at 1 MHz, 2.2 V
– Standby Mode: 0.5 µA
– Off Mode (RAM Retention): 0.1 µA
• Five Power-Saving Modes
• Ultra-Fast Wake-up From Standby Mode in Less Than 1 µs
• 16-Bit RISC Architecture, up to 12-MHz System Clock
• Basic Clock Module Configurations
– Internal Frequencies up to 12 MHz With Two Calibrated Frequencies
– Internal Very-Low-Power Low-Frequency (LF) Oscillator
– High-Frequency (HF) Crystal up to 16 MHz
– Resonator
– External Digital Clock Source
Applications of PIC12F675-I/P
This document contains device specific information for the PIC12F629/675
Environmental & Export Classifications of PIC12F675-I/P
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
