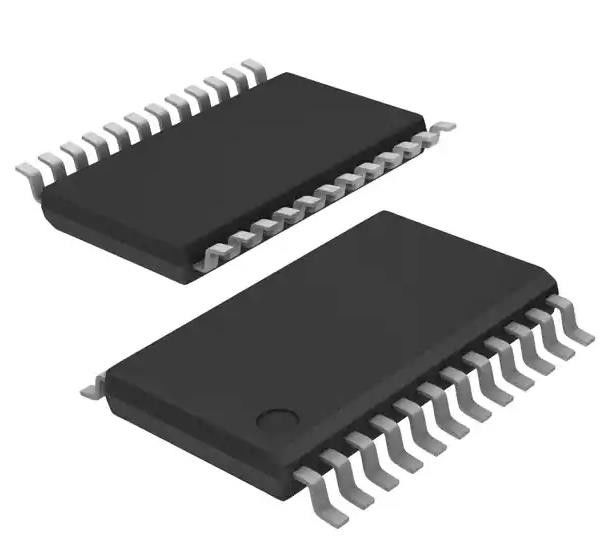

MSP430AFE253IPWR MSP430 CPU16 MSP430F2xx Microcontroller IC 16-Bit 12MHz 16KB
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MSP430AFE253IPWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Core Processor: | MSP430 CPU16 | Core Size: | 16-Bit |
|---|---|---|---|
| Speed: | 12MHz | Connectivity: | SPI, UART/USART |
| Peripherals: | Brown-out Detect/Reset, PWM, WDT | Number Of I/O: | 11 |
| Program Memory Size: | 16KB (16K X 8) | Program Memory Type: | FLASH |
| RAM Size: | 512 X 8 | Voltage - Supply (Vcc/Vdd): | 1.8V ~ 3.6V |
Product Description
MSP430AFE253IPWR MSP430 CPU16 MSP430F2xx Microcontroller IC 16-Bit 12MHz 16KB
Specifications of MSP430AFE253IPWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | MSP430F2xx |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Core Processor | MSP430 CPU16 |
| Core Size | 16-Bit |
| Speed | 12MHz |
| Connectivity | SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, PWM, WDT |
| Number of I/O | 11 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 3x24b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
| Base Product Number | MSP430AFE253 |
Features of MSP430AFE253IPWR
• Low Supply Voltage Range: 1.8 V to 3.6 V
• Ultra-Low Power Consumption
– Active Mode: 220 µA at 1 MHz, 2.2 V
– Standby Mode: 0.5 µA
– Off Mode (RAM Retention): 0.1 µA
• Five Power-Saving Modes
• Ultra-Fast Wake-up From Standby Mode in Less Than 1 µs
• 16-Bit RISC Architecture, up to 12-MHz System Clock
• Basic Clock Module Configurations
– Internal Frequencies up to 12 MHz With Two Calibrated Frequencies
– Internal Very-Low-Power Low-Frequency (LF) Oscillator
– High-Frequency (HF) Crystal up to 16 MHz
– Resonator
– External Digital Clock Source
Applications of MSP430AFE253IPWR
• Single-Phase Electricity Meters
• Digital Power Monitoring
• Sensor Applications
Environmental & Export Classifications of MSP430AFE253IPWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
