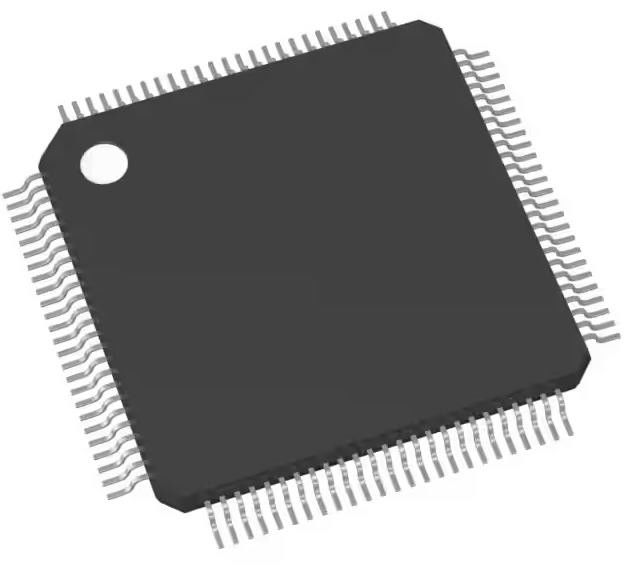

TC233LC-24F133F Microcontroller IC 32 Bit Single Core 133MHz 1.5MB FLASH
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TC233LC-24F133F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Core Processor: | TriCore™ | Core Size: | 32-Bit Single-Core |
|---|---|---|---|
| Speed: | 133MHz | Connectivity: | CANbus, FlexRay, LINbus, QSPI |
| Peripherals: | DMA, PWM, WDT | Number Of I/O: | 78 |
| Program Memory Size: | 1.5MB (1.5M X 8) | EEPROM Size: | 128K X 8 |
| High Light: | TC233LC-24F133F microcontroller ic,32 Bit microcontroller ic |
||
Product Description
TC233LC-24F133F Microcontroller IC 32-Bit Single-Core 133MHz 1.5MB FLASH
Specifications of TC233LC-24F133F
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Infineon Technologies |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | TriCore™ |
| Core Size | 32-Bit Single-Core |
| Speed | 133MHz |
| Connectivity | CANbus, FlexRay, LINbus, QSPI |
| Peripherals | DMA, PWM, WDT |
| Number of I/O | 78 |
| Program Memory Size | 1.5MB (1.5M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128K x 8 |
| RAM Size | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.17V ~ 5.5V |
| Data Converters | A/D 24x12b SAR |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-TQFP Exposed Pad |
| Supplier Device Package | PG-TQFP-100-23 |
| Base Product Number | SAK-TC233 |
Features of TC233LC-24F133F
The TC23x product family has the following features:
• High Performance Microcontroller with one CPU core
• Power Efficient scalar TriCore CPU (TC1.6E), having the following features:
– Binary code compatibility with TC1.6P
– up to 200 MHz operation at full temperature range
– up to 184 Kbyte Data Scratch-Pad RAM (DSPR)
– up to 8 Kbyte Instruction Scratch-Pad RAM (PSPR)
– 8 Kbyte Instruction Cache (ICACHE)
– 4 line read buffer (DRB)
Environmental & Export Classifications of TC233LC-24F133F
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
