SPC58EC80C3QMC0X Automotive Ic SPC58 32-Bit Dual-Core 180MHz 4MB
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SPC58EC80C3QMC0X |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Speed: | 180MHz | Core Size: | 32-Bit Dual-Core |
|---|---|---|---|
| Core Processor: | E200z420 | Connectivity: | CANbus, Ethernet, FlexRay, I²C, LINbus, SPI |
| Peripherals: | DMA | Number Of I/O: | 64 |
| Program Memory Size: | 4MB (4M X 8) | Program Memory Type: | FLASH |
| High Light: | SPC58EC80C3QMC0X automotive ic,SPC58 automotive ic |
||
Product Description
SPC58EC80C3QMC0X Automotive SPC58 Microcontroller IC 32-Bit Dual-Core 180MHz 4MB
Specifications of SPC58EC80C3QMC0X
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | STMicroelectronics |
| Series | Automotive, AEC-Q100, SPC58 |
| Package | Tape & Reel (TR) |
| Core Processor | e200z420 |
| Core Size | 32-Bit Dual-Core |
| Speed | 180MHz |
| Connectivity | CANbus, Ethernet, FlexRay, I²C, LINbus, SPI |
| Peripherals | DMA |
| Number of I/O | 64 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128K x 8 |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.3V, 5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

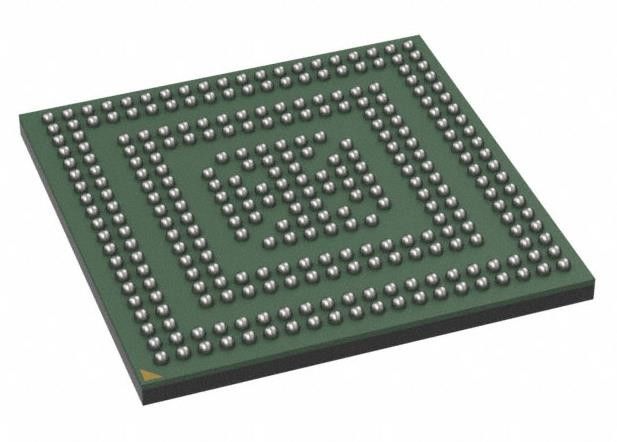

| Package / Case | 292-FBGA |
| Supplier Device Package | 292-FPBGA (17x17) |
| Base Product Number | SPC58 |
Features of SPC58EC80C3QMC0X
• AEC-Q100 qualified
• High performance e200z420n3 dual core
– 32-bit Power Architecture technology CPU
– Core frequency as high as 180 MHz
– Variable Length Encoding (VLE)
• 4224 KB (4096 KB code flash + 128 KB data flash) on-chip flash memory: supports read during program and erase operations, and multiple blocks allowing EEPROM emulation
• 176 KB HSM dedicated flash memory (144 KB code + 32 KB data)
• 384 KB on-chip general-purpose SRAM (in addition to 128 KB core local data RAM: 64 KB included in each CPU)
• Multi-channel direct memory access controller (eDMA) with 64 channels
• 1 interrupt controller (INTC)
• Comprehensive new generation ASIL-B safety concept
– ASIL-B of ISO 26262
– FCCU for collection and reaction to failure notifications
Applications of SPC58EC80C3QMC0X
The SPC584Cx and SPC58ECx microcontroller is the first in a new family of devices superseding the SPC564Cx and SPC56ECx family
Environmental & Export Classifications of SPC58EC80C3QMC0X
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| REACH Status | REACH Unaffected |
| ECCN | OBSOLETE |
| HTSUS | 0000.00.0000 |
