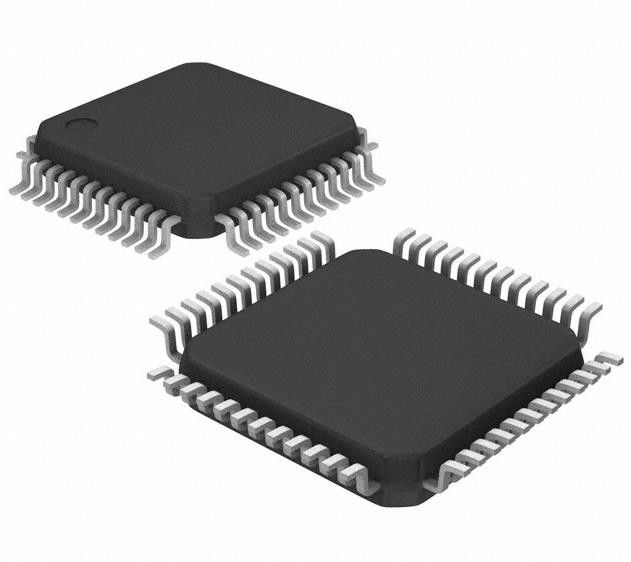

MB96F613RBPMC-GSE1 F²MC-16FX F²MC-16FX MB96610 Microcontroller IC 16-Bit
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MB96F613RBPMC-GSE1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Peripherals: | DMA, LVD, POR, PWM, WDT | Number Of I/O: | 37 |
|---|---|---|---|
| Program Memory Size: | 96KB (96K X 8) | Program Memory Type: | FLASH |
| RAM Size: | 10K X 8 | Voltage - Supply (Vcc/Vdd): | 2.7V ~ 5.5V |
| Data Converters: | A/D 16x8/10b | Oscillator Type: | Internal |
Product Description
MB96F613RBPMC-GSE1 F²MC-16FX F²MC-16FX MB96610 Microcontroller IC 16-Bit
Specifications of MB96F613RBPMC-GSE1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Infineon Technologies |
| Series | F²MC-16FX MB96610 |
| Package | Tray |
| Core Processor | F²MC-16FX |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | CANbus, LINbus, SCI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 37 |
| Program Memory Size | 96KB (96K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 10K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 16x8/10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-LQFP |
| Supplier Device Package | 48-LQFP (7x7) |
| Base Product Number | MB96F613 |
Features of MB96F613RBPMC-GSE1
*Technology
◼ 0.18µm CMOS
*CPU
◼ F 2MC-16FX CPU
◼ Optimized instruction set for controller applications (bit, byte, word and long-word data types, 23 different addressing modes, barrel shift, variety of pointers)
◼ 8-byte instruction queue
◼ Signed multiply (16-bit 16-bit) and divide (32-bit/16-bit) instructions available
Applications of MB96F613RBPMC-GSE1
CY96610 series is based on Cypress advanced F2MC-16FX architecture (16-bit with instruction pipeline for RISC-like performance).
Environmental & Export Classifications of MB96F613RBPMC-GSE1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
