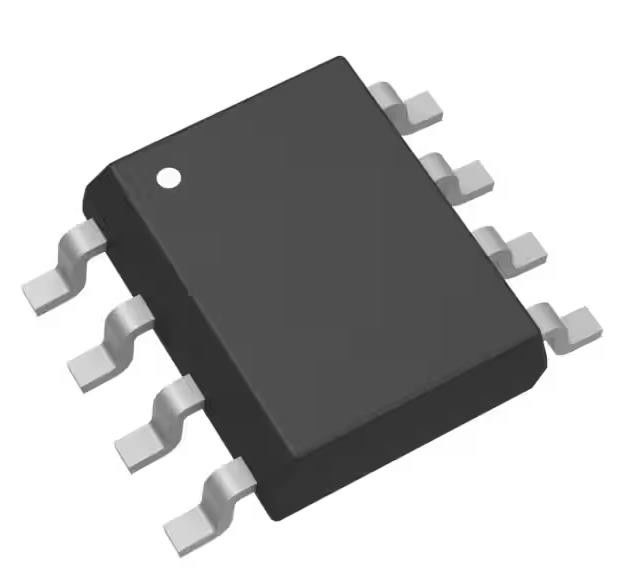

DMP2022LSS-13 P-Channel 20 V 10A (Ta) 2.5W (Ta) Surface Mount 8-SO
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DMP2022LSS-13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| FET Type: | P-Channel | Technology: | MOSFET (Metal Oxide) |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 20 V | Current - Continuous Drain (Id) @ 25°C: | 10A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On): | 2.5V, 10V | Rds On (Max) @ Id, Vgs: | 13mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id: | 1.1V @ 250µA | Gate Charge (Qg) (Max) @ Vgs: | 56.9 NC @ 10 V |
Product Description
CY8CTMA884LTI-13 Microcontroller IC 2156-CY8CTMA884LTI-13-CY-ND
Specifications of DMP2022LSS-13
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 56.9 nC @ 10 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 2444 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SO |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Base Product Number | DMP2022 |
Features of DMP2022LSS-13
* Low On-Resistance
- 13mΩ @ VGS = -10V
- 16mΩ @ VGS = -4.5V
- 22mΩ @ VGS = -2.5V
* Low Gate Threshold Voltage
* Low Input Capacitance
* Fast Switching Speed
* Low Input/Output Leakage
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified to AEC-Q101 Standards for High Reliability
Applications of DMP2022LSS-13
* Case: SO-8
* Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
* Moisture Sensitivity: Level 1 per J-STD-020
* Terminals Connections: See Diagram
* Terminals: Finish - Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208
* Weight: 0.072g (Approximate)
Environmental & Export Classifications of DMP2022LSS-13
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
