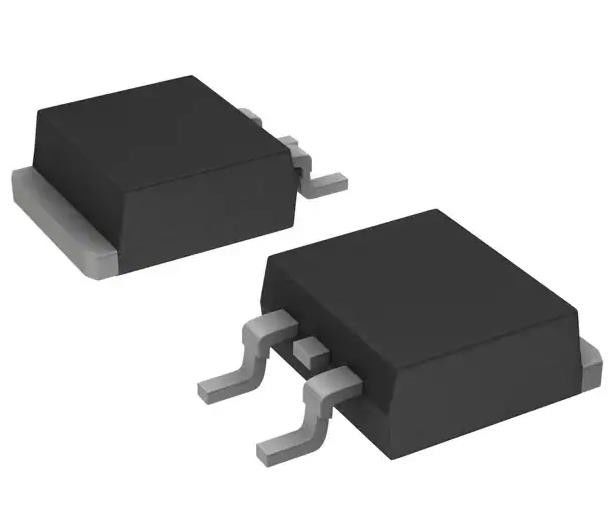

SBR40U200CTB-13 Diode Array 1 Pair Common Cathode 200 V 20A TO-263-3 D²Pak
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SBR40U200CTB-13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Diode Configuration: | 1 Pair Common Cathode | Technology: | Super Barrier |
|---|---|---|---|
| Voltage - DC Reverse (Vr) (Max): | 200 V | Current - Average Rectified (Io) (per Diode): | 20A |
| Voltage - Forward (Vf) (Max) @ If: | 930 MV @ 20 A | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr): | 50 Ns | Current - Reverse Leakage @ Vr: | 200 µA @ 200 V |
Product Description
SBR40U200CTB-13 Diode Array 1 Pair Common Cathode 200 V 20A TO-263-3 D²Pak
Specifications of SBR40U200CTB-13
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Mfr | Diodes Incorporated |
| Series | SBR® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Super Barrier |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) (per Diode) | 20A |
| Voltage - Forward (Vf) (Max) @ If | 930 mV @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns |
| Current - Reverse Leakage @ Vr | 200 µA @ 200 V |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263AB (D²PAK) |
| Base Product Number | SBR40 |
Features of SBR40U200CTB-13
* Ultra Low Forward Voltage Drop
* Low Leakage Current
* Excellent High-Temperature Stability
* Patented Super Barrier Rectifier Technology
* Soft, Fast Switching Capability
* Lead Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Also Available in Green Molding Compound (Note 4)
Applications of SBR40U200CTB-13
* Ultra Low Forward Voltage Drop
* Low Leakage Current
* Excellent High-Temperature Stability
* Patented Super Barrier Rectifier Technology
* Soft, Fast Switching Capability
* Lead Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Also Available in Green Molding Compound (Note 4)
Environmental & Export Classifications of SBR40U200CTB-13
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
