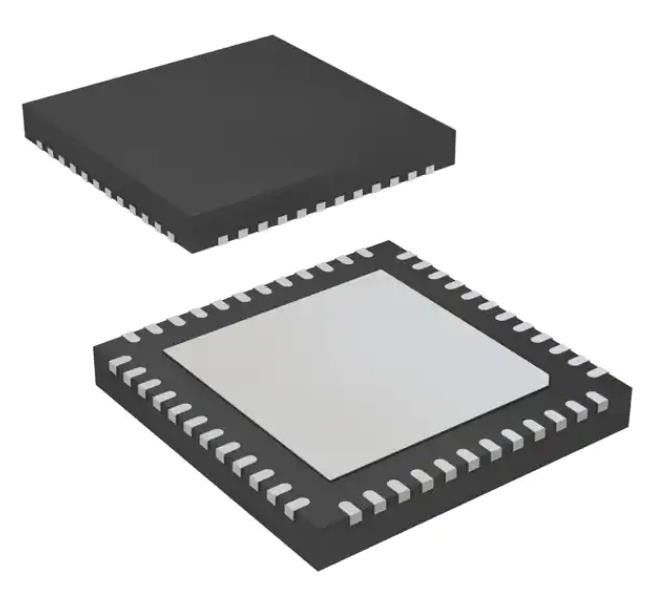

MSP430FR5869IRGZR CPUXV2 FRAM Microcontroller IC 16-Bit 16MHz 64KB FRAM 48-VQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MSP430FR5869IRGZR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Core Processor: | MSP430 CPUXV2 | Core Size: | 16-Bit |
|---|---|---|---|
| Speed: | 16MHz | Connectivity: | I²C, IrDA, SCI, SPI, UART/USART |
| Peripherals: | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Number Of I/O: | 40 |
| Program Memory Size: | 64KB (64K X 8) | Program Memory Type: | FRAM |
Product Description
MSP430FR5869IRGZR CPUXV2 FRAM Microcontroller IC 16-Bit 16MHz 64KB FRAM 48-VQFN
Specifications of MSP430FR5869IRGZR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | MSP430™ FRAM |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| DigiKey Programmable | Verified |
| Core Processor | MSP430 CPUXV2 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I²C, IrDA, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 40 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FRAM |
| EEPROM Size | - |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) |
| Base Product Number | MSP430FR5869 |
Features of MSP430FR5869IRGZR
• Embedded Microcontroller
– 16-Bit RISC Architecture up to 16‑MHz Clock
– Wide Supply Voltage Range From 3.6 V Down to 1.8 V (Minimum Supply Voltage is Restricted by SVS Levels, See the SVS Specifications)
• Optimized Ultra-Low-Power Modes
– Active Mode: Approximately 100 µA/MHz
– Standby (LPM3 With VLO): 0.4 µA (Typical)
– Real-Time Clock (LPM3.5): 0.25 µA (Typical) (1)
– Shutdown (LPM4.5): 0.02 µA (Typical)
• Ultra-Low-Power Ferroelectric RAM (FRAM)
– Up to 64KB of Nonvolatile Memory
– Ultra-Low-Power Writes
– Fast Write at 125 ns Per Word (64KB in 4 ms)
– Unified Memory = Program + Data + Storage in One Single Space
– 1015 Write Cycle Endurance
– Radiation Resistant and Nonmagnetic
Applications of MSP430FR5869IRGZR
• Metering
• Energy Harvested Sensor Nodes
• Wearable Electronics
• Sensor Management
• Data Logging
Environmental & Export Classifications of MSP430FR5869IRGZR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A992C |
| HTSUS | 8542.31.0001 |
