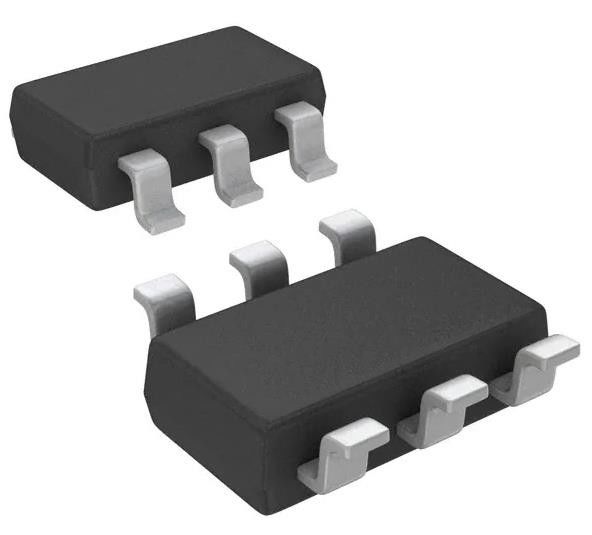

LM73CIMK-0/NOPB Digital Temperature Sensor Local -40°C ~ 150°C 13 B TSOT-23-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM73CIMK-0/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Features: | One-Shot, Output Switch, Programmable Resolution, Shutdown Mode | Sensing Temperature - Local: | -40°C ~ 150°C |
|---|---|---|---|
| Output Type: | I²C/SMBus | Voltage - Supply: | 2.7V ~ 5.5V |
| Resolution: | 13 B | Accuracy - Highest (Lowest): | ±1.5°C (±2.5°C) |
| Test Condition: | -10°C ~ 80°C (-40°C ~ 150°C) | Operating Temperature: | -40°C ~ 150°C |
| High Light: | LM73CIMK-0/NOPB,TSOT-23-6 digital temperature sensor |
||
Product Description
LM73CIMK-0/NOPB Temperature Sensor Digital Local -40°C ~ 150°C 13 b TSOT-23-6
Boost, Flyback, Forward Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-SOIC
Specifications of LM73CIMK-0/NOPB
| TYPE | DESCRIPTION |
| Category | Sensors, Transducers |
| Analog and Digital Output | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Sensing Temperature - Local | -40°C ~ 150°C |
| Sensing Temperature - Remote | - |
| Output Type | I²C/SMBus |
| Voltage - Supply | 2.7V ~ 5.5V |
| Resolution | 13 b |
| Features | One-Shot, Output Switch, Programmable Resolution, Shutdown Mode |
| Accuracy - Highest (Lowest) | ±1.5°C (±2.5°C) |
| Test Condition | -10°C ~ 80°C (-40°C ~ 150°C) |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 |
| Base Product Number | LM73 |
Features of LM73CIMK-0/NOPB
* Single Address Pin Offers Choice of ThreeSelectable Addresses Per Version for a Total ofSix Possible Addresses.
* SMBus and 12C-compatible Two-Wire Interface
* Supports 400-Khz Operation
* Shutdown Mode With One-shot Feature Availablefor Very Low Average Power Consumption
* Programmable Digital Temperature ResolutionFrom 11 Bits to 14 Bits
* Fast Conversion Rate ldeal for Quick Power Upand Measuring Rapidly Changing Temperature
* Open-Drain ALERT Output Pin Goes Active When Temperature is Above a Programmed Temperature Limit
* Very Stable, Low-noise Digital Output
* UL Recognized Component
* Key Specifications
- Supply Current
- Operating
- 320 uA (Typical)
- 495 uA (Maximum)
- Shutdown
- 8 uA (Maximum)
- 1.9 uA (Typical)
- Temperature Accuracy
- 10°C to 80°C:1.0'C (Maximum)
- 25°C to 115°C: 1.5C (Maximum)
- 40°C to 150°C: +2C (Maximum)
- Resolution
- 0.25'C to 0.03125C
- Conversion Time
- 11-Bit (0.25°C): 14 ms (Maximum)
- 14-Bit (0.03125°C): 112 ms (Maximum)
Features of LM73CIMK-0/NOPB
• Portable Electronics
• Notebook Computers
• Automotive
• System Thermal Management
• Office Electronics
Environmental & Export Classifications of LM73CIMK-0/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
