32MHz ADE Chip Temperature Sensor IC 384KB RL78 Core Processor
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | R5F104MKGFB#50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Core Processor: | RL78 |
|---|---|---|---|
| Core Size: | 16-Bit | Speed: | 32MHz |
| Connectivity: | CSI, I²C, LINbus, UART/USART | Peripherals: | DMA, LVD, POR, PWM, WDT |
| Number Of I/O: | 64 | Program Memory Size: | 384KB (384K X 8) |
| High Light: | ADE Chip Temperature Sensor IC,32MHz ADE Chip,Temperature Sensor IC RL78 |
||
Product Description
R5F104MKGFB#50 Integrated Circuits IC Mcu 16bit 384kb Flash 80lqfp

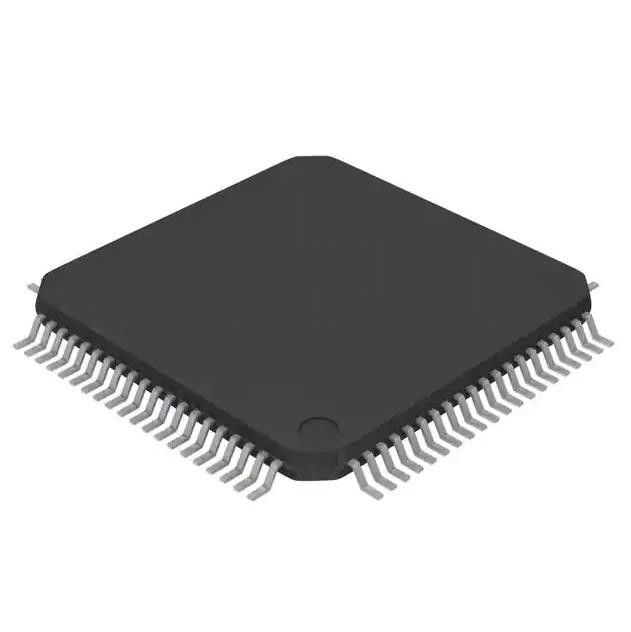

RL78 RL78/G14 Microcontroller IC 16-Bit 32MHz 384KB (384K x 8) FLASH 80-LQFP (12x12)
Specifications of R5F104MKGFB#50
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Renesas Electronics America Inc |
| Series | RL78/G14 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | RL78 |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 64 |
| Program Memory Size | 384KB (384K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 8K x 8 |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Data Converters | A/D 17x8/10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 80-LQFP |
| Supplier Device Package | 80-LQFP (12x12) |
| Base Product Number | R5F104 |
Features of R5F104MKGFB#50
Ultra-Low Power Consumption Technology
• VDD = single power supply voltage of 1.6 to 5.5 V which
can operate a 1.8 V device at a low voltage
• HALT mode
• STOP mode
• SNOOZE mode
APPLICATIONS of R5F104MKGFB#50
Although the CSI function is generally called SPI, it is also called CSI in this product, so it is referred to as such in this manual.
Environmental & Export Classifications of R5F104MKGFB#50
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
