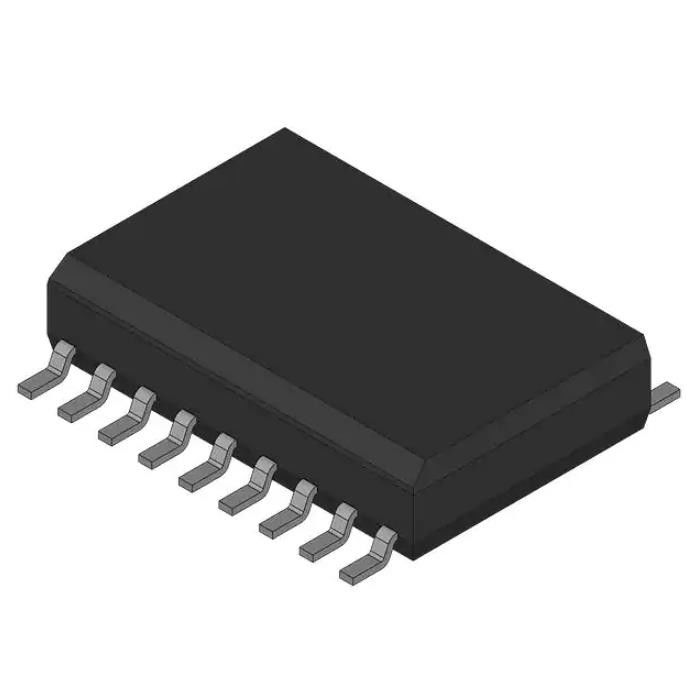

ADS1212U Temperature Sensor Chip 22Bit 18 Soic ADC IC Chip
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS1212U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Bulk | Product Status: | Active |
|---|---|---|---|
| Number Of Bits: | 22 | Sampling Rate (Per Second): | 6.25k |
| Number Of Inputs: | 1 | Input Type: | Differential |
| Data Interface: | SPI | Configuration: | PGA-ADC |
| High Light: | ADS1212U Temperature Sensor Chip,22Bit 18 Soic ADC IC Chip,22Bit ADC Temperature Sensor Chip |
||
Product Description
ADS1212U Integrated Circuit Chip Adc 22bit Sigma-Delta 18soic
22 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta 18-SOIC
Specifications of ADS1212U
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Burr Brown |
| Series | - |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 22 |
| Sampling Rate (Per Second) | 6.25k |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | PGA |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 18-SOIC |
| Mounting Type | Surface Mount |
Features of ADS1212U
● DELTA-SIGMA A/D CONVERTER
● 22 BITS NO MISSING CODES
● 20 BITS EFFECTIVE RESOLUTION AT 10Hz
AND 16 BITS AT 1000Hz
● LOW POWER: 1.4mW
● DIFFERENTIAL INPUTS
● PROGRAMMABLE GAIN AMPLIFIER
● SPI™ COMPATIBLE SSI INTERFACE
● PROGRAMMABLE CUTOFF FREQUENCY
UP TO 6.25kHz
● INTERNAL/EXTERNAL REFERENCE
● ON-CHIP SELF-CALIBRATION
● ADS1213 INCLUDES 4-CHANNEL MUX
Applications of ADS1212U
● BLOOD ANALYSIS
● SMART TRANSMITTERS
● PORTABLE INSTRUMENTS
● WEIGH SCALES
● PRESSURE TRANSDUCER
● SMART TRANSMITTERS
● PORTABLE INSTRUMENTS
● WEIGH SCALES
● PRESSURE TRANSDUCER
Environmental & Export Classifications of ADS1212U
| ATTRIBUTE | DESCRIPTION |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
