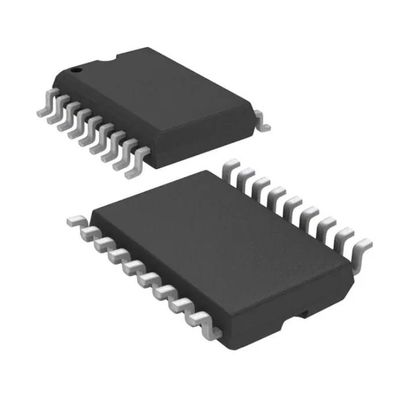

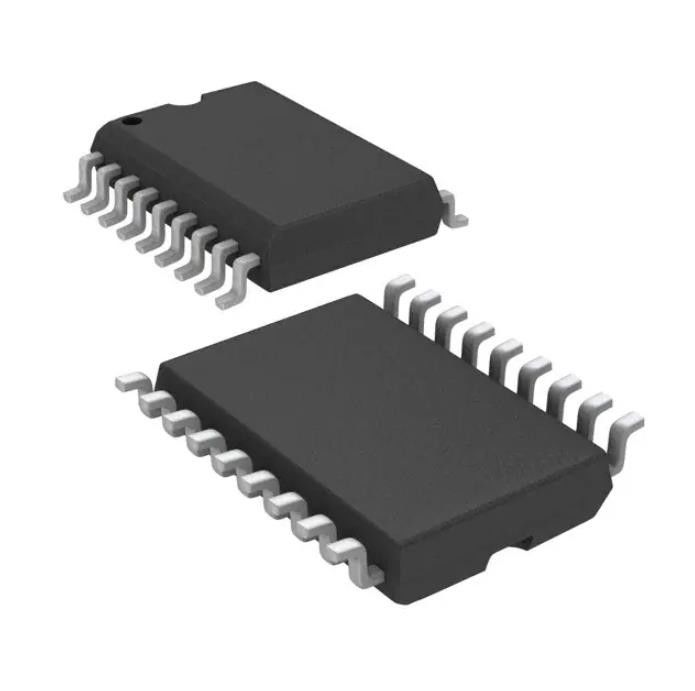

ADS1210U Temp Sensor IC 18soic 24 Bit Sigma Delta ADC Analog To Digital Converter
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS1210U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tube | Product Status: | Obsolete |
|---|---|---|---|
| Number Of Bits: | 24 | Sampling Rate (Per Second): | 16k |
| Number Of Inputs: | 1 | Input Type: | Differential |
| Data Interface: | SPI | Configuration: | PGA-ADC |
| High Light: | ADS1210U Temp Sensor IC,18soic 24 Bit Sigma Delta ADC,ADS1210U Analog to Digital Converter |
||
Product Description
ADS1210U Integrated Circuit Chip Adc 24bit Sigma-Delta 18soic
24 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta 8-SOIC
Specifications of ADS1210U
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | Obsolete |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 16k |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | PGA |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 8-SOIC |
| Mounting Type | Surface Mount |
| Base Product Number | ADS1210 |
Features of ADS1210U
●DELTA-SIGMA A/D CONVERTER
●23 BITS EFFECTIVE RESOLUTION AT 10HzAND 20 BITS AT 1000Hz
●DIFFERENTIAL INPUTS
●PROGRAMMABLE GAIN AMPLIFIER
●FLEXIBLE SPI™-COMPATIBLE SSIINTERFACE WITH 2-WIRE MODE
●PROGRAMMABLE CUT-OFF FREQUENCYUP TO 15.6kHz
●INTERNAL/EXTERNAL REFERENCE
●ON-CHIP SELF-CALIBRATION
●ADS1211 INCLUDES 4-CHANNEL MUX
Applications of ADS1210U
●INDUSTRIAL PROCESS CONTROL
●INSTRUMENTATION
●BLOOD ANALYSIS
●SMART TRANSMITTERS
●PORTABLE INSTRUMENTS
●WEIGH SCALES
●PRESSURE TRANSDUCERS
Environmental & Export Classifications of ADS1210U
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
