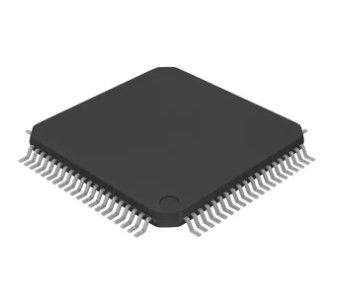

80LQFP R5F104 Temperature Sensor Chip Mcu 16bit 384KB FLASH
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | R5F104MKGFB#50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Supply (Vcc/Vdd): | 2.4V ~ 5.5V | Data Converters: | A/D 17x8/10b; D/A 2x8b |
|---|---|---|---|
| Oscillator Type: | Internal | Operating Temperature: | -40°C ~ 105°C (TA) |
| Mounting Type: | Surface Mount | Package / Case: | 80-LQFP |
| Supplier Device Package: | 80-LQFP (12x12) | Base Product Number: | R5F104 |
| High Light: | R5F104 Temperature Sensor Chip,80LQFP Temperature Sensor Chip,16bit 384KB Temperature Sensor ic |
||
Product Description
R5f104mkgfb#50 Temperature Sensor Chip Ic Mcu 16bit 384kb Flash 80lqfp
RL78 RL78/G14 Microcontroller IC 16-Bit 32MHz 384KB (384K x 8) FLASH 80-LQFP (12x12)
Specifications of R5f104mkgfb#50
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Renesas Electronics America Inc |
| Series | RL78/G14 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | RL78 |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 64 |
| Program Memory Size | 384KB (384K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 8K x 8 |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Data Converters | A/D 17x8/10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 80-LQFP |
| Supplier Device Package | 80-LQFP (12x12) |
| Base Product Number | R5F104 |
Features of R5f104mkgfb#50
Ultra-Low Power Consumption Technology
• VDD = single power supply voltage of 1.6 to 5.5V which can operate a 1.8 V device at a low voltage
• HALT mode
• STOP mode
• SNOOZE mode
Applications of R5f104mkgfb#50
• CISC architecture with 3-stage pipeline
• Minimum instruction execution time: Can be changed from high speed (0.03125 s: @ 32 MHz operation with high-speed on-chip oscillator) to ultra-low speed(30.5 s: @ 32.768 kHz operation with subsystem clock)
• Multiply/divide/multiply & accumulate instructions are supported.
• Address space: 1 MB
• General-purpose registers: (8-bit register × 8)× 4 banks
• On-chip RAM: 2.5 to 48 KB
Environmental & Export Classifications of R5f104mkgfb#50.
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
