MKL26Z128VFT4 Kinetis KL2 Microcontroller IC 32-Bit Single-Core 48MHz 128KB FLASH
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MKL26Z128VFT4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Core Size: | 32-Bit Single-Core | Speed: | 48MHz |
|---|---|---|---|
| Connectivity: | I²C, LINbus, SPI, UART/USART, USB, USB OTG | Number Of I/O: | 36 |
| Program Memory Size: | 128KB (128K X 8) | RAM Size: | 16K X 8 |
| Voltage - Supply (Vcc/Vdd): | 1.71V ~ 3.6V | Data Converters: | A/D - 16bit; D/A - 12bit |
| High Light: | MKL26Z128VFT4,MKL26Z128VFT4 Microcontroller IC,48MHz Microcontroller IC |
||
Product Description
MKL26Z128VFT4 Kinetis KL2 Microcontroller IC 32-Bit Single-Core 48MHz 128KB FLASH

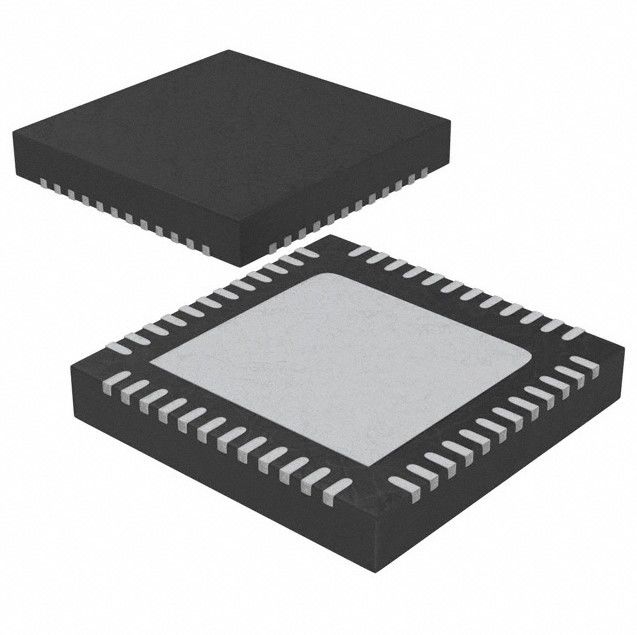

IC MCU 32BIT 128KB FLASH 48QFN
Specifications of MKL26Z128VFT4
|
TYPE
|
DESCRIPTION
|
|
Category
|
Integrated Circuits (ICs)
|
|
Microcontrollers
|
|
|
Series
|
Kinetis KL2
|
|
Package
|
Tray
|
|
Product Status
|
Active
|
|
Core Processor
|
ARM® Cortex®-M0+
|
|
Core Size
|
32-Bit Single-Core
|
|
Speed
|
48MHz
|
|
Connectivity
|
I²C, LINbus, SPI, UART/USART, USB, USB OTG
|
|
Peripherals
|
Brown-out Detect/Reset, DMA, I²S, LVD, POR, PWM, WDT
|
|
Number of I/O
|
36
|
|
Program Memory Size
|
128KB (128K x 8)
|
|
Program Memory Type
|
FLASH
|
|
EEPROM Size
|
-
|
|
RAM Size
|
16K x 8
|
|
Voltage - Supply (Vcc/Vdd)
|
1.71V ~ 3.6V
|
|
Data Converters
|
A/D - 16bit; D/A - 12bit
|
|
Oscillator Type
|
Internal
|
|
Operating Temperature
|
-40°C ~ 105°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
48-VFQFN Exposed Pad
|
|
Supplier Device Package
|
48-QFN (7x7)
|
|
Base Product Number
|
MKL26Z128
|
Features of MKL26Z128VFT4
Performance
• 48 MHz ARM® Cortex®-M0+ core
Memories and memory interfaces
• Up to 128 KB program flash memory
• Up to 16 KB SRAM
System peripherals
• Nine low-power modes to provide power optimization based on application requirements
• COP Software watchdog
• 4-channel DMA controller, supporting up to 63 request
sources
• Low-leakage wakeup unit
• SWD debug interface and Micro Trace Buffer
• Bit Manipulation Engine
Clocks
• 32 kHz to 40 kHz or 3 MHz to 32 MHz crystal oscillator
• Multi-purpose clock source
Operating Characteristics
• Voltage range: 1.71 to 3.6 V
• Flash write voltage range: 1.71 to 3.6 V
• Temperature range (ambient): -40 to 105°C
Human-machine interface
• Low-power hardware touch sensor interface (TSI)
• Up to 50 general-purpose input/output (GPIO)
Communication interfaces
• USB full-/low-speed On-the-Go controller with onchip transceiver and 5 V to 3.3 V regulator
• Two 16-bit SPI modules
• I2S (SAI) module
• One low power UART module
• Two UART modules
• Two I2C module
Analog Modules
• 16-bit SAR ADC
• 12-bit DAC
• Analog comparator (CMP) containing a 6-bit DAC and programmable reference input
Timers
• Six channel Timer/PWM (TPM)
• Two 2-channel Timer/PWM modules
• Periodic interrupt timers
• 16-bit low-power timer (LPTMR)
• Real time clock
Applications of MKL26Z128VFT4
• Run power consumption down to 40 μA/MHz in very low power run mode
• Static power consumption down to 2 μA with full state retention and 4.5 μs wakeup
• Ultra-efficient Cortex-M0+ processor running up to 48 MHz with industry leading throughput
• Memory option is up to 128 KB flash and 16 KB RAM
• Energy-saving architecture is optimized for low power with 90nm TFS technology, clock and power gating techniques,
and zero wait state flash memory controller
Environmental & Export Classifications of MKL26Z128VFT4
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
