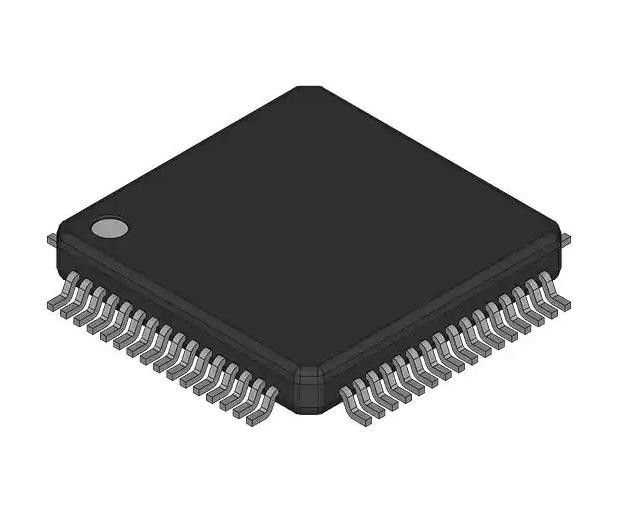

R5F212B8SNFA#U0 R8C R8C/2x/2B Microcontroller IC 16-Bit 20MHz 64KB FLASH
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | R5F212B8SNFA#U0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Core Processor: | R8C | Core Size: | 16-Bit |
|---|---|---|---|
| Speed: | 20MHz | Connectivity: | I²C, LINbus, SIO, SSU, UART/USART |
| Peripherals: | POR, PWM, Voltage Detect, WDT | Number Of I/O: | 55 |
| Program Memory Size: | 64KB (64K X 8) | Program Memory Type: | FLASH |
| RAM Size: | 3K X 8 | Voltage - Supply (Vcc/Vdd): | 2.2V ~ 5.5V |
Product Description
R5F212B8SNFA#U0 R8C R8C/2x/2B Microcontroller IC 16-Bit 20MHz 64KB FLASH
IC MCU 16BIT 64KB FLASH 64LQFP
Specifications of R5F212B8SNFA#U0
| TYPE | DESCRIPTION |
| Category | Microcontrollers |
| Mfr | Renesas Electronics America Inc |
| Series | R8C/2x/2B |
| Package | Bulk |
| Core Processor | R8C |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | I²C, LINbus, SIO, SSU, UART/USART |
| Peripherals | POR, PWM, Voltage Detect, WDT |
| Number of I/O | 55 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 3K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 5.5V |
| Data Converters | A/D 12x10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (14x14) |
| Base Product Number | R5F212B |
Features of R5F212B8SNFA#U0
* The R8C/2A Group and R8C/2B Group of single-chip MCUs incorporates the R8C/Tiny Series CPU core,employing sophisticated instructions for a high level of efficiency.
With 1 Mbyte of address space, and it is capable of executing instructions at high speed.
In addition, the CPU core boasts a multiplier for high-speed operation processing.
* Power consumption is low, and the supported operating modes allow additional power control.
These MCUs also use an anti-noise configuration to reduce emissions of electromagnetic noise and are designed to withstand EMI.
Integration of many peripheral functions, including multifunction timer and serial interface, reduces the number of system components.
* Furthermore, the R8C/2B Group has on-chip data flash (1 KB × 2 blocks).
The difference between the R8C/2A Group and R8C/2B Group is only the presence or absence of data flash.
Their peripheral functions are the same.
Applications of R5F212B8SNFA#U0
* Electronic household appliances, office equipment, audio equipment, consumer equipment, etc.
Environmental & Export Classifications of R5F212B8SNFA#U0
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | Not applicable |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | Vendor Undefined |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
