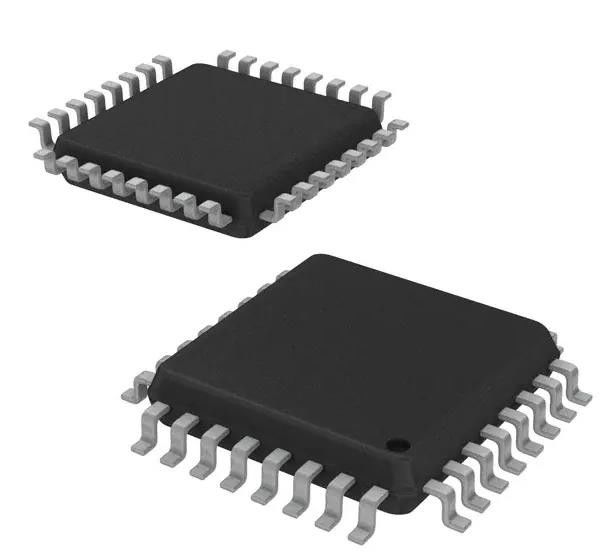

MC56F82733VLC Microcontroller IC 32-Bit Single-Core 100MHz 48KB FLASH 32-LQFP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MC56F82733VLC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Core Processor: | 56800EX | Core Size: | 32-Bit Single-Core |
|---|---|---|---|
| Speed: | 100MHz | Connectivity: | I²C, SCI, SPI |
| Peripherals: | DMA, POR, PWM, WDT | Number Of I/O: | 26 |
| Program Memory Size: | 48KB (24K X 16) | Program Memory Type: | FLASH |
| RAM Size: | 4K X 16 | Voltage - Supply (Vcc/Vdd): | 2.7V ~ 3.6V |
Product Description
MC56F82733VLC Microcontroller IC 32-Bit Single-Core 100MHz 48KB FLASH 32-LQFP
IC MCU 32BIT 48KB FLASH 32LQFP
Specifications of MC56F82733VLC
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Microcontrollers | |
| Series | 56F8xxx |
| Package | Tray |
| Product Status | Active |
| Core Processor | 56800EX |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | I²C, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 26 |
| Program Memory Size | 48KB (24K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 16 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Data Converters | A/D 6x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-LQFP |
| Supplier Device Package | 32-LQFP (7x7) |
| Base Product Number | MC56F82 |
Features of MC56F82733VLC
• This family of digital signal controllers (DSCs) is based on the 32-bit 56800EX core. On a single chip,each device combines the processing power of a DSP and the functionality of an MCU, with a flexible set of peripherals to support many target applications:
– Industrial control
– Home appliances
– Smart sensors
– Wireless charging
– Switched-mode power supply and power management
– Power distribution systems
– Motor control (ACIM, BLDC, PMSM, SR, stepper)
– Photovoltaic systems
– Circuit breaker
– Medical device/equipment
– Instrumentation
– Uninterruptible power supplies (UPS)
– Lighting
• DSC based on 32-bit 56800EX core
– Up to 100 MIPS at 100 MHz core frequency in fast mode
– DSP and MCU functionality in a unified, C-efficient architecture
• On-chip memory
– Up to 64 KB flash memory
– Up to 8 KB data/program RAM
– On-chip flash memory and RAM can be mapped into both program and data memory spaces
Descriptions of MC56F82733VLC
After reset, each pin is configured for its primary function (listed first). Any alternative functionality, shown in parentheses, must be programmed through the GPIO module peripheral enable registers (GPIOx_PER) and the SIM module GPIO peripheral select (GPSx) registers. All GPIO ports can be individually programmed as an input or output (using bit manipulation).
Environmental & Export Classifications of MC56F82733VLC
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
