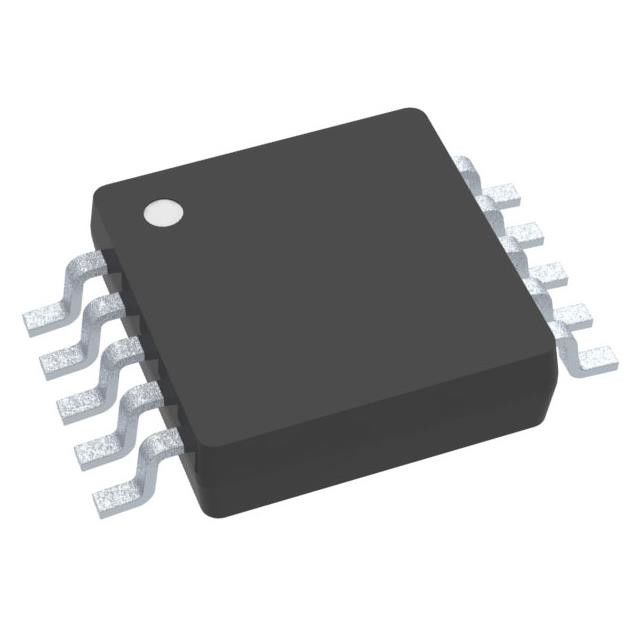

LM3481QMMX / NOP IC Regulator Positive Output Step-Up Controller 10-VSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM3481QMMX / NOP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Model: | LM3481QMMX / NOP | Output Type: | Transistor Driver |
|---|---|---|---|
| Function: | Step-Up, Step-Up/Step-Down | Topology: | Boost, Flyback, SEPIC |
| Number Of Outputs: | 1 | Output Phases: | 1 |
| Voltage - Supply (Vcc/Vdd): | 2.97V ~ 48V | Frequency - Switching: | 100kHz ~ 1MHz |
Product Description
LM3481QMMX / NOP IC Regulator Positive Output Step-Up Controller 10-VSSOP
IC REG CTRLR MULT TOP 10MSOP
Specifications of LM3481QMMX / NOP
|
TYPE
|
DESCRIPTION
|
|
Category
|
Integrated Circuits (ICs)
|
|
DC DC Switching Controllers
|
|
|
Mfr
|
Texas Instruments
|
|
Series
|
Automotive, AEC-Q100
|
|
Package
|
Tape & Reel (TR)
|
|
Cut Tape (CT)
|
|
|
Product Status
|
Active
|
|
Output Type
|
Transistor Driver
|
|
Function
|
Step-Up, Step-Up/Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Boost, Flyback, SEPIC
|
|
Number of Outputs
|
1
|
|
Output Phases
|
1
|
|
Voltage - Supply (Vcc/Vdd)
|
2.97V ~ 48V
|
|
Frequency - Switching
|
100kHz ~ 1MHz
|
|
Duty Cycle (Max)
|
85%
|
|
Synchronous Rectifier
|
No
|
|
Clock Sync
|
Yes
|
|
Serial Interfaces
|
-
|
|
Control Features
|
Enable, Frequency Control, Ramp, Soft Start
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
|
|
Supplier Device Package
|
10-VSSOP
|
|
Base Product Number
|
LM3481
|
Features of LM3481QMMX / NOP
• LM3481QMM are Automotive-Grade Products
That are AEC-Q100 Grade 1 Qualified (–40°C to +125°C Operating Junction Temperature)
• 10-Lead VSSOP Package
• Internal Push-Pull Driver With 1-A Peak Current Capability
• Current Limit and Thermal Shutdown
• Frequency Compensation Optimized With a Capacitor and a Resistor
• Internal Softstart
• Current Mode Operation
• Adjustable Undervoltage Lockout With Hysteresis
• Pulse Skipping at Light Loads
• Key Specifications
– Wide Supply Voltage Range of 2.97 V to 48 V
– 100-kHz to 1-MHz Adjustable and Synchronizable Clock Frequency
– ±1.5% (Over Temperature) Internal Reference
– 10-µA Shutdown Current (Over Temperature)
• Create a Custom Design Using the LM3481 with the WEBENCH Power Designer
Applications of LM3481QMMX / NOP
• Automotive Start-Stop Applications
• Automotive ADAS Driver Information
• One Cell/Two Cell Li-ion Battery Powered Portable Bluetooth Audio Systems
• Notebooks, PDAs, Digital Cameras, and Other Portable Applications
• Offline Power Supplies
• Set-Top Boxes
• Boost for Audio Amplifiers
Environmental & Export Classifications of LM3481QMMX / NOP
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
