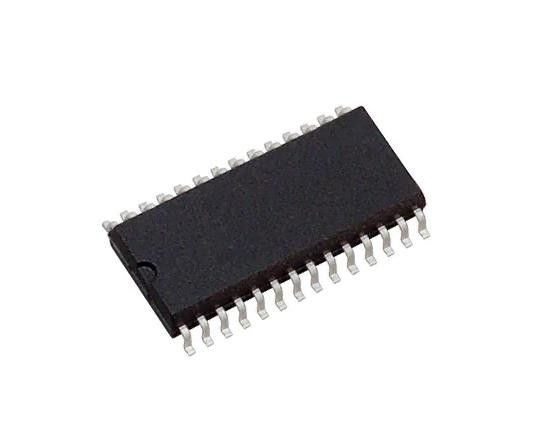

COP8SGE728M8/NOPB 8SG Microcontroller IC 8-Bit 15MHz 8KB (8K X 8) OTP 28-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | COP8SGE728M8/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Core Processor: | COP8 | Core Size: | 8-Bit |
|---|---|---|---|
| Speed: | 15MHz | Connectivity: | Microwire/Plus (SPI), UART/USART |
| Peripherals: | POR, PWM, WDT | Number Of I/O: | 24 |
| Program Memory Size: | 8KB (8K X 8) | RAM Size: | 256 X 8 |
| High Light: | Microcontroller IC 8-Bit 1,COP8SGE728M8/NOPB Microcontroller IC |
||
Product Description
COP8SGE728M8/NOPB 8SG Microcontroller IC 8-Bit 15MHz 8KB (8K x 8) OTP 28-SOIC
IC MCU 8BIT 8KB OTP 28SOIC
Specifications of COP8SGE728M8/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | COP8™ 8SG |
| Package | Tube |
| Product Status | Obsolete |
| Core Processor | COP8 |
| Core Size | 8-Bit |
| Speed | 15MHz |
| Connectivity | Microwire/Plus (SPI), UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 24 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | OTP |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| Base Product Number | COP8SGE7 |
Features of COP8SGE728M8/NOPB
* Low Cost 8-Bit Microcontroller
* Quiet Design (Low Radiated Emissions)
* Multi-Input Wakeup Pins with OptionalInterrupts (8 pins)
* Mask Selectable Clock Options
- Crystal Oscillator
- Crystal Oscillator Option with On-Chip BiasResistor
- External Oscillator
- Internal R/C Oscillator
* Internal Power-On-ResetUser Selectable
* WATCHDOG and Clock Monitor Logic-UserSelectable
* Eight High Current Outputs
* 256 or 512 Bytes On-Board RAM
* 8k to 32k ROM or OTP EPROM with Security Feature
Applications of COP8SGE728M8/NOPB
The COP8SG Family ROM and OTP based microcontrollers are highly integrated COP8™ Feature core devices with 8k to 32k memory and advanced features including Analog comparators, and zero external components.
Environmental & Export Classifications of COP8SGE728M8/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
