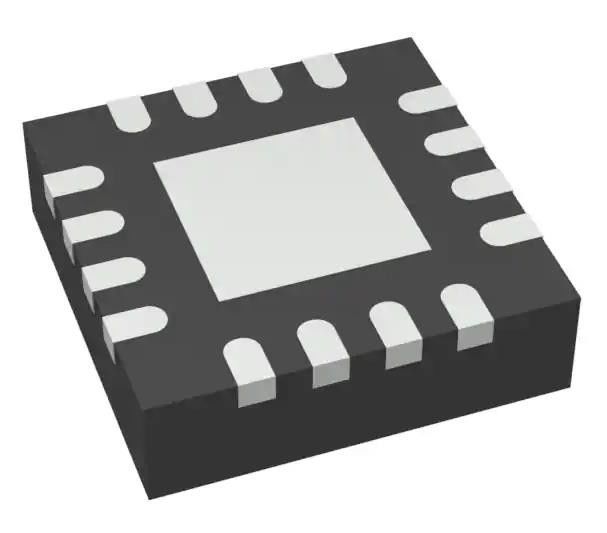

TPS65000RTER Power Management ICs CONV STP-DWN 2.25MHZ DL 16QFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS65000RTER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Applications: | Handheld/Mobile Devices | Voltage - Supply: | 2.3V ~ 6V |
|---|---|---|---|
| Operating Temperature: | -40°C ~ 85°C | Mounting Type: | Surface Mount |
| Package / Case: | 16-WFQFN Exposed Pad | Supplier Device Package: | 16-WQFN (3x3) |
| Base Product Number: | TPS65000 | Current - Supply: | - |
| High Light: | TPS65000RTER Power Management ICs,Power Management ICs DL 16QFN |
||
Product Description
TPS65000RTER Power Management ICs CONV STP-DWN 2.25MHZ DL 16QFN
Handheld/Mobile Devices PMIC 16-WQFN (3x3)
Specifications of TPS65000RTER
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Applications | Handheld/Mobile Devices |
| Current - Supply | - |
| Voltage - Supply | 2.3V ~ 6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (3x3) |
| Base Product Number | TPS65000 |
Features of TPS65000RTER
* Step-Down Converters:
- VIN Range From 2.3 V to 6 V
- Spread Spectrum Clock (SSC) Generation forReduced EMI
- 2.25-MHz Fixed Frequency Operation
- 600-mA or 1-A (TPS650061) Output Current
* Low Dropouts (LDOs):
- VIN Range From 1.6 V to 6 V
- Adjustable Output Voltage
- Up to 300-mA Output Current
- Separate Power Inputs and Enables
* Supply Voltage Supervisor (TPS65001)
- Manual Reset Input for Push Button
- Adjustable Reset Time
- Adjustable Reset Voltage
* 3-mm x 3-mm 16-Pin WQFN (TPS65000)
* 3-mm x 3-mm 20-Pin WQFN (TPS65001)
Descriptions of TPS65000RTER
* Points-of-Load
* Embedded Processor Power
* Cell Phones
* Smart Phones
* PDAs
* Pocket PCs
* Portable Media Players
Environmental & Export Classifications of TPS65000RTER
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
