600mA 2.1MHz Dip Socket IC TPS560430YQDBVRQ11 Buck Regulator IC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS560430YQDBVRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Output: | 600mA | Frequency - Switching: | 2.1MHz |
|---|---|---|---|
| Synchronous Rectifier: | Yes | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount | Package / Case: | SOT-23-6 |
| Supplier Device Package: | SOT-23-6 | Base Product Number: | TPS560430 |
| High Light: | TPS560430YQDBVRQ11,2.1MHz Dip Socket IC,600mA 2.1MHz Dip Socket |
||
Product Description

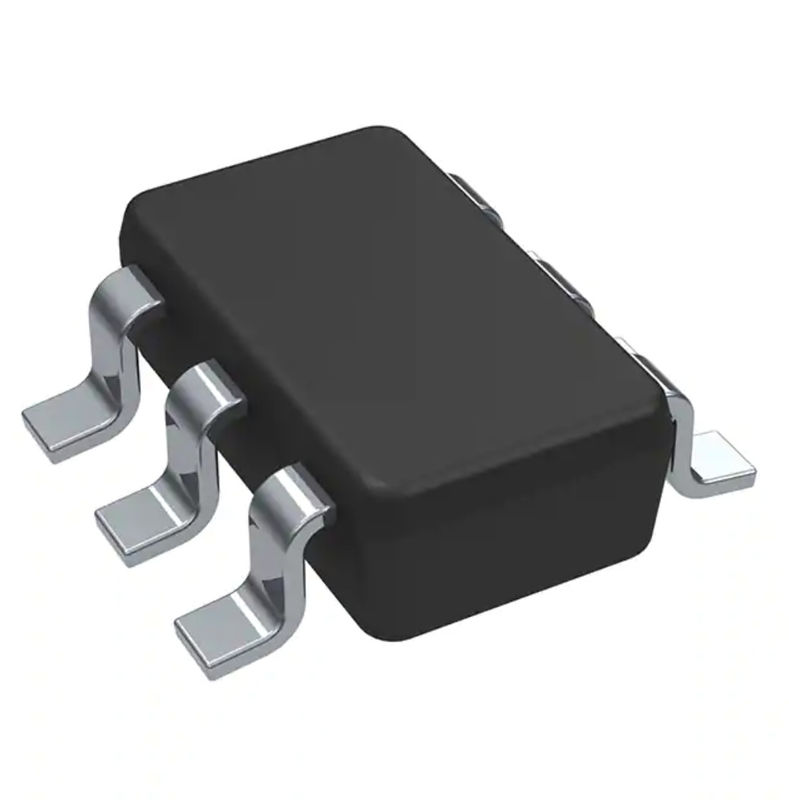

TPS560430YQDBVRQ11 Dip Ic Sockets Ic Power Management
Buck Switching Regulator IC Positive Adjustable 1V 1 Output 600mA SOT-23-6
Specifications of TPS560430YQDBVRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | 36V |
| Current - Output | 600mA |
| Frequency - Switching | 2.1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Base Product Number | TPS560430 |
Features of TPS560430YQDBVRQ1
• Qualified for automotive applications
• AEC-Q100 Qualified
- Temperature grade 1: –40°C to 125°C ambient operating temperature range
- ESD HBM classification level 2
- ESD CDM classification level C5
• Configured for rugged automotive applications
– Input voltage range: 4 V to 36 V
– 600-mA continuous output current
– Minimum switching-on time: 60 ns
– Fixed 2.1MHz frequency
– 98% maximum duty cycle
– Support startup with pre-biased output
– Short circuit protection with hiccup mode
– ±0.5% tolerance voltage reference at room temperature
– Precision enable
• Small solution size and ease of use
– Integrated synchronous rectification
– Internal compensation for ease of use
– SOT-23-6 package
• Two modes in pin-to-pin compatible package
– PFM and forced PWM (FPWM) options
• Create a custom design using the TPS560430-Q1 with the WEBENCH® Power Designer
Applications of TPS560430YQDBVRQ1
• Camera
• On-board charger
• Automotive head unit
• USB charger
• General purpose wide VIN power supplies
Environmental & Export Classifications of TPS560430YQDBVRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
