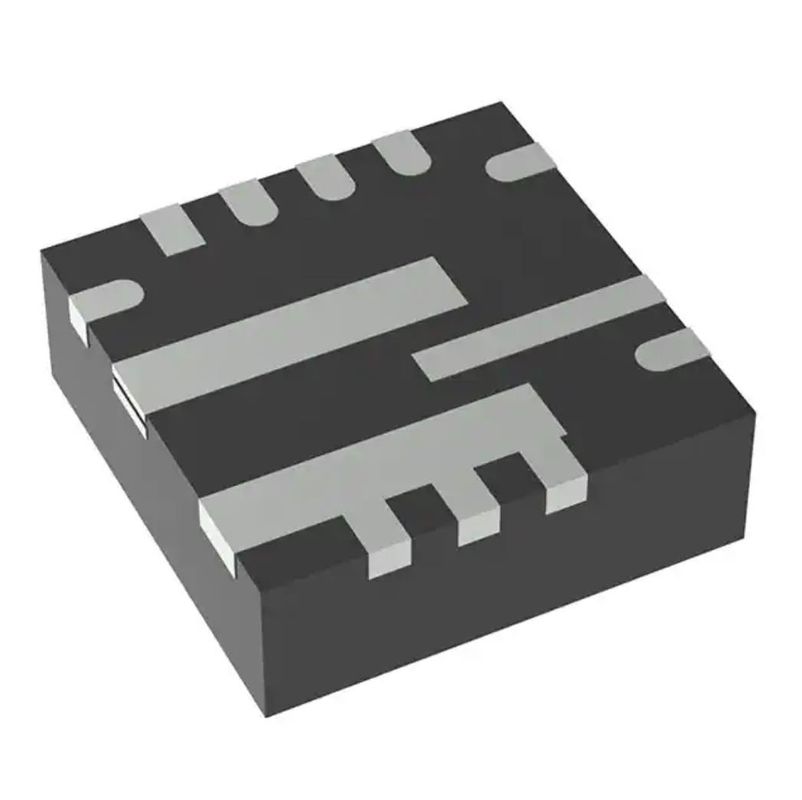

500kHz 6A Dip IC Socket Power Management ICs TPS56637RPAR
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS56637RPAR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Output: | 6A | Frequency - Switching: | 500kHz |
|---|---|---|---|
| Synchronous Rectifier: | Yes | Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount | Package / Case: | 10-PowerVFQFN |
| Supplier Device Package: | 10-VQFN-HR (3x3) | Base Product Number: | TPS56637 |
| High Light: | 500kHz 6A Dip IC Socket,500kHz Power Management ICs,TPS56637RPAR |
||
Product Description
TPS56637RPAR Dip Ic Sockets Ic Power Management 296-Tps56637rpardkr-Nd
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 6A 10-PowerVFQFN
Specifications of TPS56637RPAR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 13V |
| Current - Output | 6A |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-PowerVFQFN |
| Supplier Device Package | 10-VQFN-HR (3x3) |
| Base Product Number | TPS56637 |
Features of TPS56637RPAR
• 4.5-V to 28-V input voltage range
• 0.6-V to 13-V output voltage range
• 6-A maximum continuous output current
• Integrated 26-mΩ and 12-mΩ MOSFETs
• 0.6-V ±1% Reference Voltage
• D-CAP3™ control mode for fast transient response
• Eco-mode™ and FCCM (forced continuous conduction mode) selectable for light-load operation through MODE pin
• Internal 2-ms soft start
• Built-in output discharge function
• 500-kHz switching frequency
• Power good indicator to monitor output voltage
• Cycle by cycle over current limit
• Non-latched protections for UV, OV, OT and UVLO
• –40°C to +150°C operating junction temperature
• Small 10-Pin 3.0-mm × 3.0-mm HotRod™ QFN Package
• Available in WEBENCH® Power Designer to create custom designs
Applications of TPS56637RPAR
• Enterprise systems: multifunction printers, storage
• Personal electronics: TVs, speakers, set-top box, portable electronics
• Industrial applications: electronic point of sale, factory automation and control, motor drives
• General purposes for 12-V,19-V, 24-V power-bus supply
Environmental & Export Classifications of TPS56637RPAR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
