TVS Diode SMD Flyback Regulator IC Power Management ICs LM5180NGUR
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM5180NGUR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Step-Up/Step-Down |
|---|---|---|---|
| Output Configuration: | Positive And Negative | Topology: | Flyback |
| Output Type: | Adjustable | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 4.5V | Voltage - Input (Max): | 65V |
| High Light: | SMD Flyback Regulator IC,TVS Diode Flyback Regulator IC,LM5180NGUR |
||
Product Description
LM5180NGUR Tvs Diode Smd Ic Power Management 296-Lm5180ngurtr-Nd

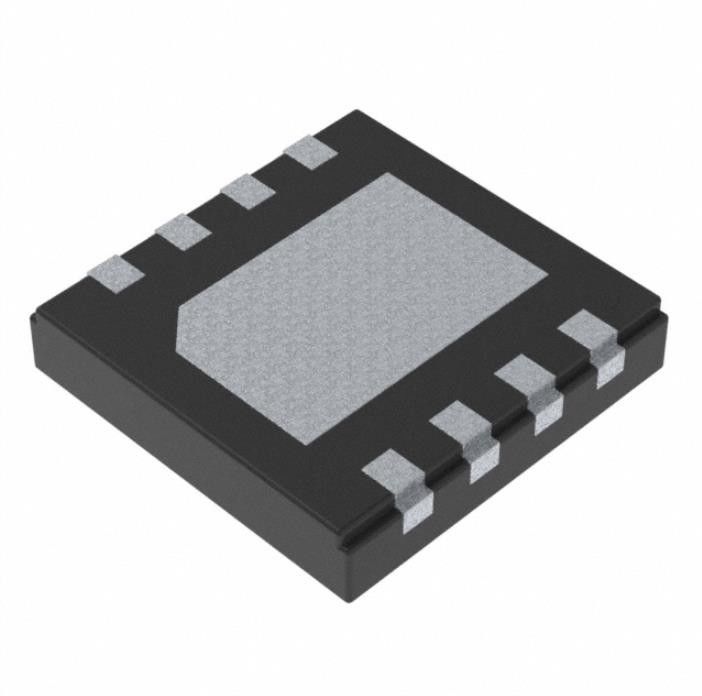

Flyback Switching Regulator IC Positive and Negative Adjustable 1.21V 1 Output 8-WDFN Exposed Pad
Specifications of LM5180NGUR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive and Negative |
| Topology | Flyback |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 65V |
| Voltage - Output (Min/Fixed) | 1.21V |
| Voltage - Output (Max) | 42V |
| Current - Output | - |
| Frequency - Switching | 10kHz ~ 350kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (4x4) |
| Base Product Number | LM5180 |
FEATURES of LM5180NGUR
• Designed for reliable and rugged applications
– Wide input voltage range of 4.5 V to 65 V with operation down to 3.5 V after start-up
– Robust solution with only one component crossing the isolation barrier
– 1.5% total output regulation accuracy
– Optional VOUT temperature compensation
– 6-ms internal or programmable soft start
– Input UVLO and thermal shutdown protection
– Hiccup-mode overcurrent fault protection
– –40°C to +150°C junction temperature range
• Integration reduces solution size and cost
– Integrated 100-V, 0.4-Ω power MOSFET
– No opto-coupler or transformer auxiliary winding required for VOUT regulation
– Internal loop compensation
• High-efficiency PSR flyback operation
– Quasi-resonant MOSFET turn-off in BCM
– Low input quiescent current
– External bias option for improved efficiency
– Single- and multi-output implementations
• Ultra-low conducted and radiated EMI signatures
– Soft switching avoids diode reverse recovery
– Optimized for CISPR 32 EMI requirements
• Create a custom regulator design using WEBENCH® Power Designer
Applications of LM5180NGUR
• Isolated field transmitters and field actuators
• Multi-output rails for analog input modules
• Motor drives: IGBT and SiC gate drive supplies
• Building automation HVAC systems
• Isolated bias supplies
Environmental & Export Classifications of LM5180NGUR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
