20SOIC Flip Flop IC 8 Bit Positive Edge MC74LCX374DWR2G
Product Details:
| Place of Origin: | Original |
| Brand Name: | onsemi |
| Certification: | Original |
| Model Number: | MC74LCX374DWR2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | MC74LCX374DWR2G | Number Of Bits Per Element: | 8 |
|---|---|---|---|
| Clock Frequency: | 150 MHz | Voltage - Supply: | 2V ~ 3.6V |
| Voltage Supply Source: | Single Supply | Current - Quiescent (Iq): | 10 µA |
| Input Capacitance: | -40°C ~ 85°C (TA) | ||
| High Light: | 20SOIC Flip Flop IC,Flip Flop IC 8 Bit,MC74LCX374DWR2G |
||
Product Description

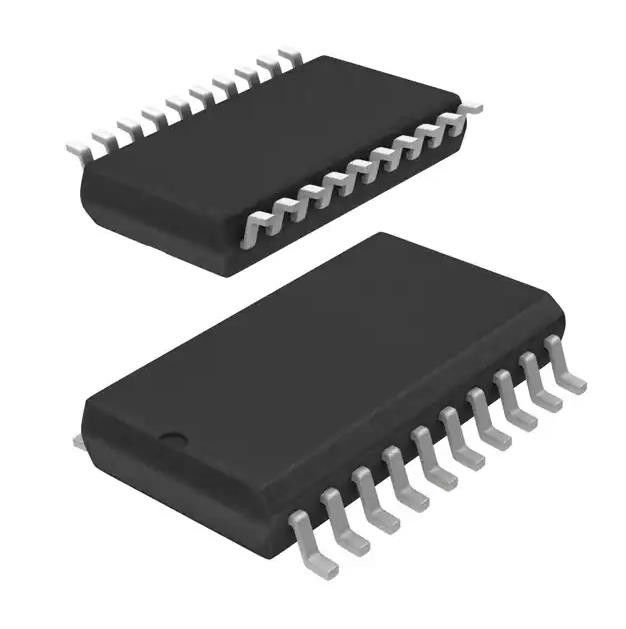

MC74LCX374DWR2G IC Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-SOIC
Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-SOIC (0.295", 7.50mm Width)
The MC74LCX374 is a high performance, non−inverting octal D−type flip−flop operating from a 2.3 to 3.6 V supply. High
impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved
switching noise performance. A VI specification of 5.5 V allows MC74LCX374 inputs to be safely driven from 5 V devices.
Features of MC74LCX374DWR2G
• Designed for 2.3 to 3.6 V VCC Operation
• 5 V Tolerant − Interface Capability With 5 V TTL Logic
• Supports Live Insertion and Withdrawal
• IOFF Specification Guarantees High Impedance When VCC = 0 V
• LVTTL Compatible
• LVCMOS Compatible
• 24 mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current in All Three Logic States (10 A) Substantially Reduces System Power Requirements
• Latchup Performance Exceeds 500 mA
• ESD Performance:
♦ Human Body Model >2000 V
♦ Machine Model >200 V
• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements;
AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Specifications of MC74LCX374DWR2G
|
Mfr
|
onsemi
|
|
Series
|
74LCX
|
|
Product Status
|
Active
|
|
Function
|
Standard
|
|
Type
|
D-Type
|
|
Output Type
|
Tri-State, Non-Inverted
|
|
Number of Elements
|
1
|
|
Number of Bits per Element
|
8
|
|
Clock Frequency
|
150 MHz
|
|
Max Propagation Delay @ V, Max CL
|
8.5ns @ 3.3V, 50pF
|
|
Trigger Type
|
Positive Edge
|
|
Current - Output High, Low
|
24mA, 24mA
|
|
Voltage - Supply
|
2V ~ 3.6V
|
|
Current - Quiescent (Iq)
|
10 µA
|
|
Input Capacitance
|
7 pF
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
20-SOIC
|
|
Package / Case
|
20-SOIC (0.295", 7.50mm Width)
|
|
Base Product Number
|
74LCX374
|
range (−10 ̊
Environmental & Export Classifications
with avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
