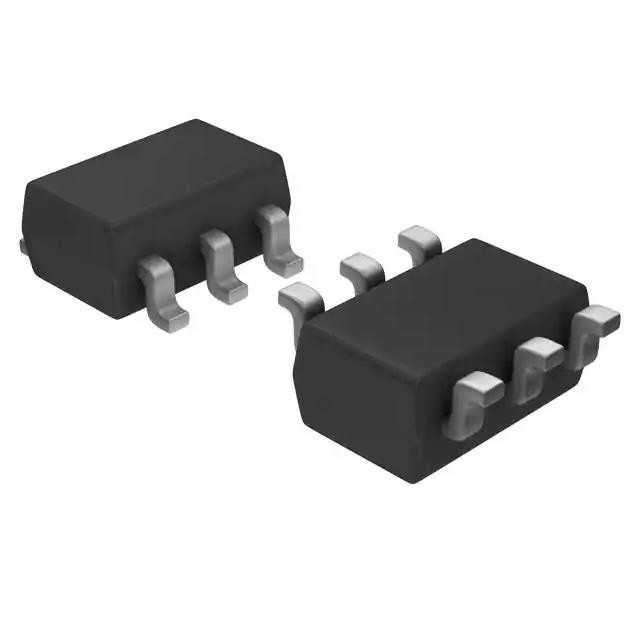

XN4501-TX 50V 100mA Power Management ICs 150MHz 300mW MINI6-G1
Product Details:
| Place of Origin: | Original |
| Brand Name: | Panasonic |
| Certification: | Original |
| Model Number: | XN4501-(TX) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | XN4501-(TX) | Transistor Type: | 2 NPN (Dual) |
|---|---|---|---|
| Current - Collector (Ic) (Max): | 100mA | Voltage - Collector Emitter Breakdown (Max): | 50V |
| Vce Saturation (Max) @ Ib, Ic: | 300mV @ 10mA, 100mA | Current - Collector Cutoff (Max): | 100µA |
| Power - Max: | 300mW | Frequency - Transition: | 150MHz |
| High Light: | XN4501-TX,50V 100mA Power Management ICs,Power Management ICs 150MHz |
||
Product Description
XN4501-(TX) Power Management ICs 50V 100mA 150MHz 300mW MINI6-G1
Bipolar (BJT) Transistor Array 2 NPN (Dual) 50V 100mA 150MHz 300mW Surface Mount MINI6-G1
Specifications of XN4501-(TX)
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Discrete Semiconductor Products
Transistors
Bipolar (BJT)
Bipolar Transistor Arrays
|
|
Mfr
|
Panasonic Electronic Components
|
|
Series
|
-
|
| Package | Tape & Reel |
|
Product
|
XN4501-(TX)
|
|
Transistor Type
|
2 NPN (Dual)
|
|
Current - Collector (Ic) (Max)
|
100mA
|
|
Voltage - Collector Emitter Breakdown (Max)
|
50V
|
|
Vce Saturation (Max) @ Ib, Ic
|
300mV @ 10mA, 100mA
|
|
Current - Collector Cutoff (Max)
|
100µA
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
160 @ 2mA, 10V
|
|
Power - Max
|
300mW
|
|
Frequency - Transition
|
150MHz
|
|
Operating Temperature
|
150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SOT-23-6
|
|
Supplier Device Package
|
MINI6-G1
|
|
Base Product Number
|
XN0450
|
range (−10 ̊
Environmental & Export Classifications of XN4501-(TX)
with avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.21.0075 |
Additional Resources of XN4501-(TX)
| ATTRIBUTE | DESCRIPTION |
|---|---|
| Other Names |
Q1562526C
XN0450100LTR
XN4501CT
XN0450100LDKR
XN4501CT-ND
XN4501-(TX)
XN0450100LCT-NDR
XN4501-TX
XN4501TR
XN4501TR-ND
XN0450100LCT
XN0450100LTR-NDR
|
| Standard Package | 3,000 |
