2.1MHz 2A Buck Boost Regulator IC TPS63802DLAT Positive Adjustable
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS63802DLAT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Input (Min): | 1.3V |
|---|---|---|---|
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 1.8V |
| Voltage - Output (Max): | 5.2V | Current - Output: | 2A |
| Frequency - Switching: | 2.1MHz | Synchronous Rectifier: | Yes |
| High Light: | 2A Buck Boost Regulator IC,2.1MHz Buck Boost Regulator IC,TPS63802DLAT |
||
Product Description
TPS63802DLAT Power Switch Ics Ic Power Management 296-Tps63802dlatct-Nd
Buck-Boost Switching Regulator IC Positive Adjustable 1.8V 1 Output 2A 10-VFDFN
Specifications of TPS63802DLAT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.3V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | 5.2V |
| Current - Output | 2A |
| Frequency - Switching | 2.1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |

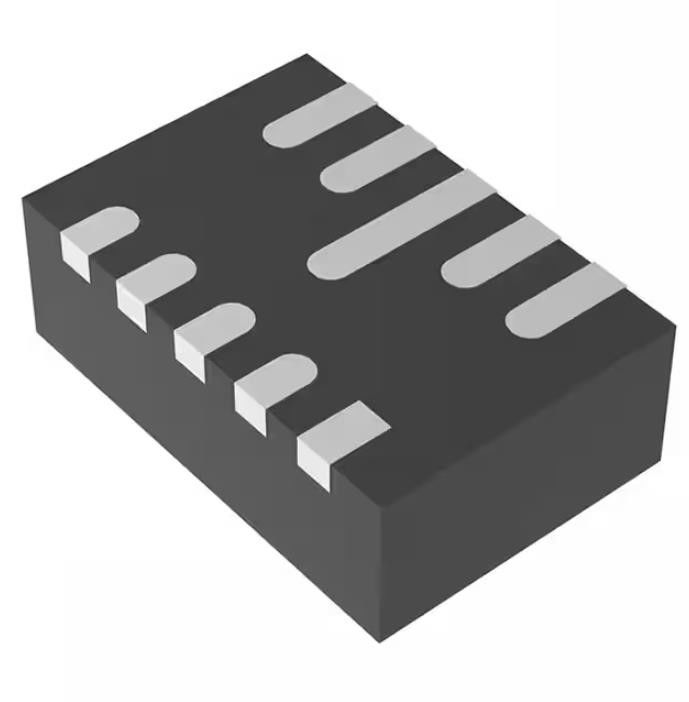

| Package / Case | 10-VFDFN |
| Supplier Device Package | 10-VSON-HR (3x2) |
| Base Product Number | TPS63802 |
Features of TPS63802DLAT
• Input voltage range: 1.3 V to 5.5 V
– Device input voltage > 1.8 V for start-up
• Output voltage range: 1.8 V to 5.2 V (adjustable)
• 2-A output current for VI ≥ 2.3 V, VO = 3.3 V
• High efficiency over the entire load range
– 11-µA operating quiescent current
– Power save mode and mode selection for forced PWM-mode
• Peak current buck-boost mode architecture
– Defined transition points between buck, buckboost, and boost operation modes
– Forward and reverse current operation
– Start-up into pre-biased outputs
• Safety and robust operation features
– Integrated soft start
– Overtemperature- and overvoltage-protection
– True shutdown function with load disconnect
– Forward and backward current limit
• Small solution size of 21.5 mm2
– Tiny SON/DFN package (similar to QFN)
– Small 0.47-µH inductor
– Works with a 22-µF minimum output capacitor
• Create a custom design using the TPS63802 with the WEBENCH® Power Designer
Applications of TPS63802DLAT
• System pre-regulator (tracking and telematics, portable POS, home automation, IP network camera)
• Point-of-load regulation (wired sensor, port/cable adapter and dongle, electronic smart lock, IoT)
• Battery back-up supply (electricity meter, data concentrator, power quality meter)
• Thermoelectric device supply (TEC, optical modules)
• General purpose voltage stabilizer and converter
Environmental & Export Classifications of TPS63802DLAT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
