STM8AL3168TAX Microcontroller IC With 8-Bit 16MHz 32KB (32K x 8) FLASH 48-LQFP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | STM8AL3168TAX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Core Size: | 8-Bit | Speed: | 16MHz |
|---|---|---|---|
| Connectivity: | I²C, IrDA, LINbus, SPI, UART/USART | Number Of I/O: | 41 |
| Program Memory Size: | 32KB (32K X 8) | Program Memory Type: | FLASH |
| EEPROM Size: | 1K X 8 | RAM Size: | 2K X 8 |
| High Light: | STM8AL3168TAX Microcontroller IC,16MHz Microcontroller IC |
||
Product Description

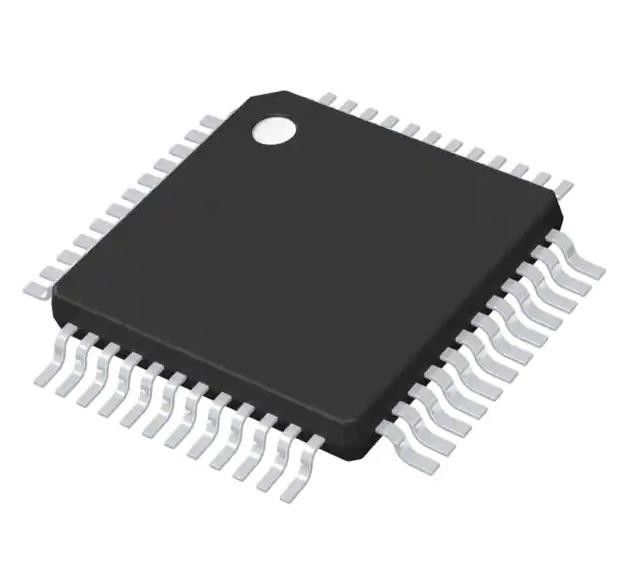

STM8AL3168TAX Microcontroller IC With 8-Bit 16MHz 32KB (32K x 8) FLASH 48-LQFP
STM8AL3168TAX IC MCU 8BIT 32KB FLASH 48LQFP
Specifications of STM8AL3168TAX
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Microcontrollers | |
| Mfr | STMicroelectronics |
| Series | STM8A |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Core Processor | STM8A |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I²C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 41 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 3.6V |
| Data Converters | A/D 25x12b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-LQFP |
| Supplier Device Package | 48-LQFP (7x7) |
| Base Product Number | STM8 |
Features of STM8AL3168TAX
• AEC-Q100 qualified
• Operating conditions
– Operating power supply range 1.8 V to 3.6 V (down to 1.65 V at power down)
– Temperature range: - 40 °C to 85 or 125 °C
• Low power features
– Five low-power modes: Wait, low-power run (5.1 μA), low-power wait (3 μA), activehalt with full RTC (1.3 μA), halt with PDR (400 nA)
– Run from Flash: 195 μA/MHz + 440 μA
– Run from RAM: 90 μA/MHz + 400 μA
– Ultra-low leakage per I/0: 50 nA
– Fast wakeup from Halt: 4.7 µs
• Advanced STM8 core
– Harvard architecture and 3-stage pipeline
– Max freq. 16 MHz, 16 CISC MIPS peak
– Up to 40 external interrupt sources
Descriptions of STM8AL3168TAX
The medium-density STM8AL313x/4x/6x and STM8AL3L4x/6x devices are members of the STM8AL automotive ultra-low-power 8-bit family. The medium-density STM8AL3xxx family operates from 1.8 V to 3.6 V (down to 1.65 V at power down) and is available in the -40 to +85°C and -40 to +125°C temperature ranges.
Environmental & Export Classifications of STM8AL3168TAX
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
