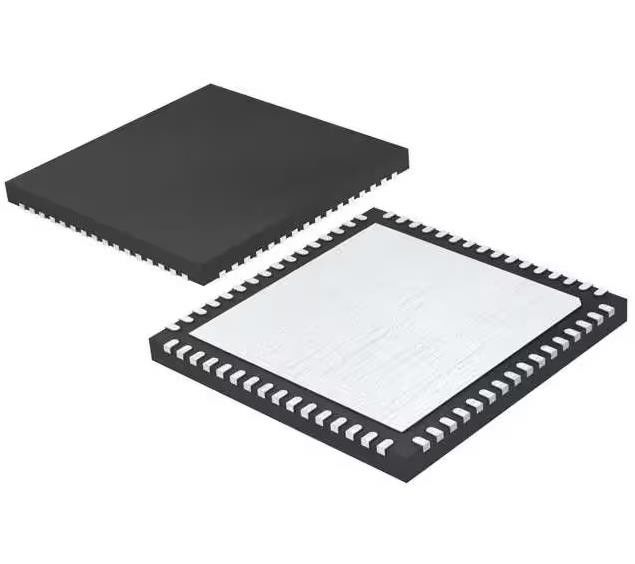

MSP430F2481TRGCR Microcontroller IC MSP430 CPU16 16-Bit 16MHz 48KB FLASH 64-VQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MSP430F2481TRGCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Core Processor: | MSP430 CPU16 | Core Size: | 16-Bit |
|---|---|---|---|
| Speed: | 16MHz | Connectivity: | I²C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals: | Brown-out Detect/Reset, POR, PWM, WDT | Number Of I/O: | 48 |
| Program Memory Size: | 48KB (48K X 8 + 256B) | Program Memory Type: | FLASH |
| RAM Size: | 4K X 8 | Voltage - Supply (Vcc/Vdd): | 1.8V ~ 3.6V |
| High Light: | MSP430F2481TRGCR Microcontroller IC,Microcontroller IC MSP430 |
||
Product Description
MSP430F2481TRGCR Microcontroller IC MSP430 CPU16 16-Bit 16MHz 48KB FLASH 64-VQFN
MSP430F2481TRGCR IC MCU 16BIT 48KB FLASH 64VQFN
Specifications of MSP430F2481TRGCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | MSP430F2xx |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | MSP430 CPU16 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I²C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 48 |
| Program Memory Size | 48KB (48K x 8 + 256B) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-VQFN (9x9) |
| Base Product Number | MSP430F2481 |
Features of MSP430F2481TRGCR
* Low Supply-Voltage Range, 1.8 V to 3.6 V
* Ultra-Low Power Consumption
- Active Mode: 270 uA at 1 MHz, 2.2 V
- Standby Mode (VLO): 0.3 A
- Off Mode (RAM Retention): 0.1 A
* Ultra-Fast Wake-Up From Standby Mode in Less Than 1 us
* 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
*Basic Clock Module Configurations:
- Internal Frequencies up to 16 MHz
- Internal Very Low-Power LF Oscillator
- 32-kHz Crystal
- Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to t1%
- Resonator
- External Digital Clock Source
- External Resistor
* 12-Bit Analog-to-Digital (A/D) Converter WithInternal Reference, Sample-and-Hold, and Autoscan Feature
* 16-Bit Timer A With Three Capture/Compare Registers
* 16-Bit Timer B With Seven Capture/Compare With Shadow Registers
* Four Universal Serial Communication Interfaces (USCI)
- USCI AO and USCI A1
- Enhanced UART Supporting Auto-BaudrateDetection
- IrDA Encoder and Decoder
- Synchronous SPI1
- UsCI BO and USCI B1l
- 12C TM
- Synchronous SPI
Descriptions of MSP430F2481TRGCR
The Texas Instruments MSP430™ family of ultra-low power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications.
Environmental & Export Classifications of MSP430F2481TRGCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
