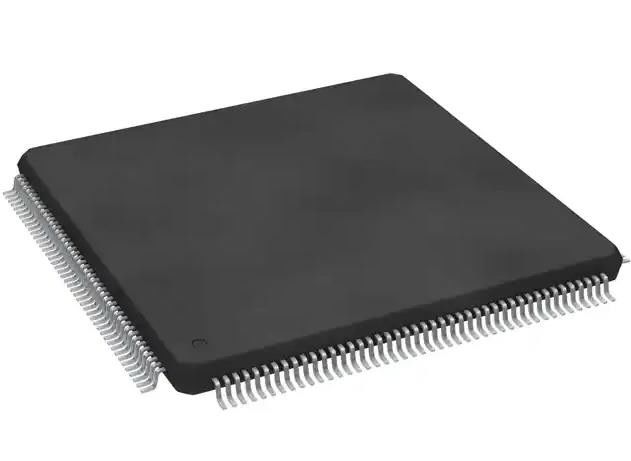

SPC5605BK0VLU6R Microcontroller IC With 32-Bit 64MHz 768KB FLASH 176-LQFP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SPC5605BK0VLU6R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Core Processor: | E200z0h | Core Size: | 32-Bit Single-Core |
|---|---|---|---|
| Speed: | 64MHz | Connectivity: | CANbus, I²C, LINbus, SCI, SPI |
| Peripherals: | DMA, POR, PWM, WDT | Number Of I/O: | 149 |
| Program Memory Size: | 768KB (768K X 8) | Voltage - Supply (Vcc/Vdd): | 3V ~ 5.5V |
| Data Converters: | A/D 29x10b, 5x12b | Operating Temperature: | -40°C ~ 105°C (TA) |
| High Light: | SPC5605BK0VLU6R Microcontroller IC,768KB Microcontroller IC |
||
Product Description
SPC5605BK0VLU6R Microcontroller IC With 32-Bit 64MHz 768KB FLASH 176-LQFP
SPC5605BK0VLU6R IC MCU 32BIT 768KB FLASH 176LQFP
Specifications of SPC5605BK0VLU6R
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Microcontrollers | |
| Series | MPC56xx Qorivva |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | e200z0h |
| Core Size | 32-Bit Single-Core |
| Speed | 64MHz |
| Connectivity | CANbus, I²C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 149 |
| Program Memory Size | 768KB (768K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 29x10b, 5x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 176-LQFP |
| Supplier Device Package | 176-LQFP (24x24) |
| Base Product Number | SPC5605 |
Features of SPC5605BK0VLU6R
• FlexCAN module supporting both FIFO and mailbox data storage, ideal for CAN gateways to manage event-driven vs. periodic bus traffic.
• LINFlex module provides fully automated LIN message management, reducing CPU load intervention and message latencies.
• Cross triggering unit synchronizes PWM output signals with analog-to-digital conversion to enable accurate diagnostic and control capabilities.
• Scalable e200z0 core enables migration toward higher performance solutions.
• Compatible family of products ensures reuse of software and tools infrastructures.
Applications of SPC5605BK0VLU6R
Environmental & Export Classifications of SPC5605BK0VLU6R
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
