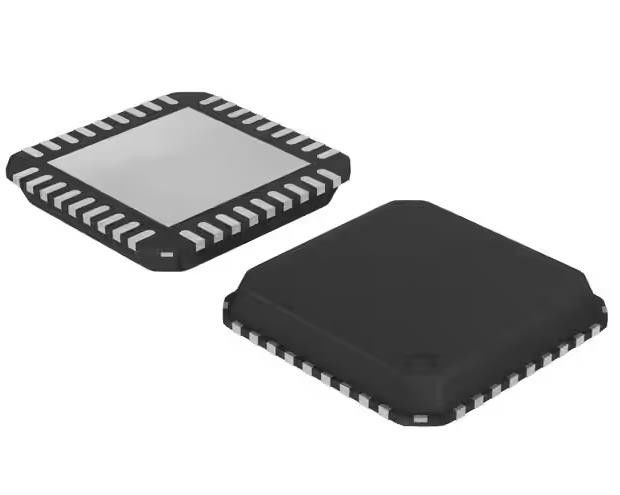

USB2513B-AEZC USB Hub Controller With USB 2.0 USB Interface 36-QFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | USB2513B-AEZC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Protocol: | USB | Function: | Hub Controller |
|---|---|---|---|
| Interface: | USB | Standards: | USB 2.0 |
| Voltage - Supply: | 3V ~ 3.6V | Current - Supply: | 65mA |
| Operating Temperature: | 0°C ~ 85°C | Package / Case: | 36-VFQFN Exposed Pad |
| High Light: | USB2513B-AEZC USB Hub Controller,36-QFN USB Hub Controller |
||
Product Description
USB2513B-AEZC USB Hub Controller With USB 2.0 USB Interface 36-QFN
IC HUB CONTROLLER USB 36QFN
Specifications of USB2513B-AEZC
| TYPE | DESCRIPTION |
| Category | Controllers |
| Mfr | Microchip Technology |
| Series | - |
| Package | Tray |
| Product Status | Active |
| Protocol | USB |
| Function | Hub Controller |
| Interface | USB |
| Standards | USB 2.0 |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Supply | 65mA |
| Operating Temperature | 0°C ~ 85°C |
| Package / Case | 36-VFQFN Exposed Pad |
| Supplier Device Package | 36-QFN (6x6) |
| Base Product Number | USB2513 |
Features of USB2513B-AEZC
• USB251xB/xBi products are fully footprint compatible with USB251x/xi/xA/xAi products as direct drop-in replacements
— Cost savings include using the same PCB components and application of USB-IF Compliance by Similarity
• Full power management with individual or ganged power control of each downstream port
• Fully integrated USB termination and pull-up/pulldown resistors
• Supports a single external 3.3 V supply source;internal regulators provide 1.2 V internal core voltage
• Onboard 24 MHz crystal driver or external 24 MHz clock input
• Customizable vendor ID, product ID, and device ID
• 4 kilovolts of HBM JESD22-A114F ESD protection (powered and unpowered)
• Supports self- or bus-powered operation
• Supports the USB Battery Charging specification Rev. 1.1 for Charging Downstream Ports (CDP)
• The USB251xB/xBi offers the following packages:
- 36-pin SQFN (6x6 mm) (Preferred)
- 36-pin QFN (6x6 mm) (Legacy)
• USB251xBi products support the industrial temperature range of -40ºC to +85ºC
• USB251xB products support the extended commercial temperature range of 0ºC to +85ºC
Applications of USB2513B-AEZC
• LCD monitors and TVs
• Multi-function USB peripherals
• PC motherboards
• Set-top boxes, DVD players, DVR/PVR
• Printers and scanners
• PC media drive bay
• Portable hub boxes
• Mobile PC docking
• Embedded systems
Environmental & Export Classifications of USB2513B-AEZC
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
