LPC11E68JBD64E Microcontroller IC 32Bit Single Core 50MHz 256KB FLASH
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LPC11E68JBD64E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Program Memory Size: | 256KB (256K X 8) | Program Memory Type: | Flash |
|---|---|---|---|
| EEPROM Size: | 4K X 8 | RAM Size: | 36K X 8 |
| Voltage - Supply (Vcc/Vdd): | 2.4V ~ 3.6V | Data Converters: | A/D 10x12b |
| Oscillator Type: | Internal | Operating Temperature: | -40°C ~ 105°C (TA) |
| High Light: | Single Core Microcontroller IC,256KB FLASH Microcontroller IC,LPC11E68JBD64E |
||
Product Description

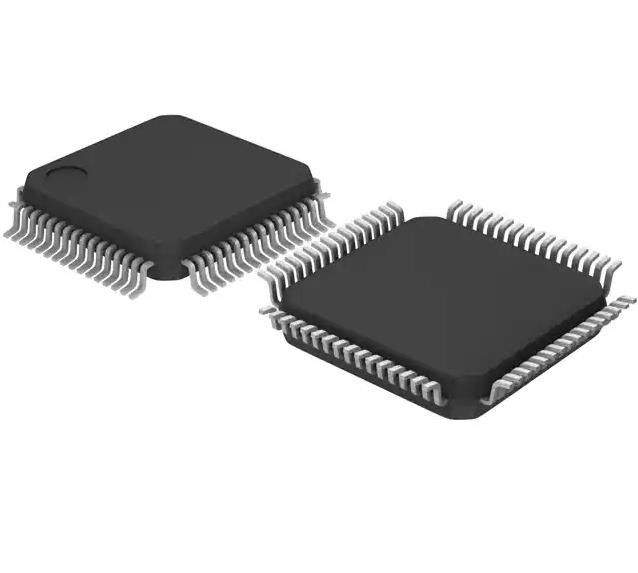

LPC11E68JBD64E Microcontroller IC 32-Bit Single-Core 50MHz 256KB FLASH 64-LQFP
LPC11E68JBD64E IC MCU 32BIT 256KB FLASH 64LQFP
Specifications of LPC11E68JBD64E
| TYPE | DESCRIPTION |
| Category | Microcontrollers |
| Series | LPC11Exx |
| Package | Tray |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 50MHz |
| Connectivity | I²C, Microwire, SPI, SSI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 50 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 36K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Data Converters | A/D 10x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| Base Product Number | LPC11 |
Features of LPC11E68JBD64E
*System:
- ARM Cortex-M0+ processor (version r0p1), running at frequencies of up to 50 MHz with single-cycle multiplier and fast single-cycle I/O port.
- ARM Cortex-M0+ built-in Nested Vectored Interrupt Controller (NVIC).
- AHB Multilayer matrix.
- System tick timer.
- Serial Wire Debug (SWD) and JTAG boundary scan modes supported.
- Micro Trace Buffer (MTB) supported.
*Memory:
- Up to 256 KB on-chip flash programming memory with page erase.
- Up to 32 KB main SRAM.
- Up to two additional SRAM blocks of 2 KB each.
- Up to 4 KB EEPROM.
*ROM API support:
- Boot loader.
- USART drivers.
- I2C drivers.
- DMA drivers.
- Power profiles.
- Flash In-Application Programming (IAP) and In-System Programming (ISP).
Applications of LPC11E68JBD64E
*Three-phase e-meter
*Car radio
*GPS tracker
*Medical monitor
*Gaming accessories
*PC peripherals
Environmental & Export Classifications of LPC11E68JBD64E
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
