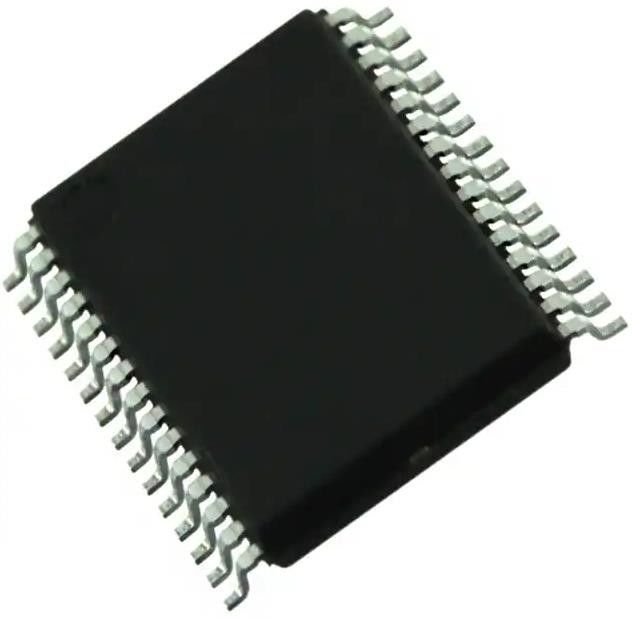

R5F101AGASP#V0 Microcontrollers IC RL78 RL78/G13 16-Bit 32MHz 128KB 1.6V ~ 5.5V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | R5F101AGASP#V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000pcs |
|
Detail Information |
|||
| RAM Size: | 12K X 8 | Voltage - Supply (Vcc/Vdd): | 1.6V ~ 5.5V |
|---|---|---|---|
| Data Converters: | A/D 8x8/10b | Oscillator Type: | Internal |
| Core Processor: | RL78 | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
R5F101AGASP#V0 Microcontrollers IC RL78 RL78/G13 16-Bit 32MHz 128KB
IC MCU 16BIT 128KB FLASH 30LSSOP
Specifications of R5F101AGASP#V0
| TYPE | DESCRIPTION |
| Category | Microcontrollers |
| Mfr | Renesas Electronics America Inc |
| Series | RL78/G13 |
| Package | Tray |
| Product Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Core Processor | RL78 |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 21 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 12K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V |
| Data Converters | A/D 8x8/10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 30-LSSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 30-LSSOP |
| Base Product Number | R5F101 |
Features of R5F101AGASP#V0
*Ultra-low power consumption technology
-VDD = single power supply voltage of 1.6 to 5.5 V
-HALT mode
-STOP mode
-SNOOZE mode
*RL78 CPU core
-CISC architecture with 3-stage pipeline
-Minimum instruction execution time: Can be changed from high speed (0.03125 μs: @ 32 MHz operation with high-speed on-chip oscillator) to ultra-low speed (30.5 μs: @ 32.768 kHz operation with subsystem clock)
-Address space: 1 MB
-General-purpose registers: (8-bit register × 8) × 4 banks
-On-chip RAM: 2 to 32 KB
Introduction of R5F101AGASP#V0
True low-power platform (66 μA/MHz, and 0.57 μA for operation with only RTC and LVD) for the general-purpose applications, with 1.6-V to 5.5-V operation, 16- to 512-Kbyte code flash memory, and 41 DMIPS at 32 MHz
Environmental & Export Classifications of R5F101AGASP#V0
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
