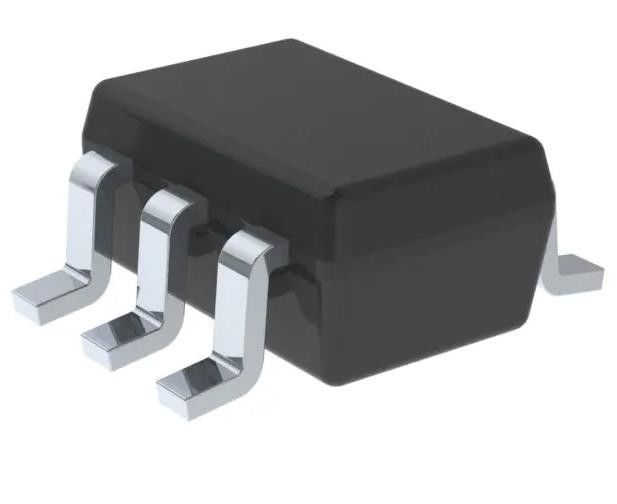

LM66100DCKR OR Controller IC P-Channel 1:1 IDEAL DIODE SC70-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM66100DCKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Delay Time - ON: | 27 µs | Delay Time - OFF: | 2 µs |
|---|---|---|---|
| Current - Output (Max): | 1.5A | Voltage - Supply: | 1.5V ~ 5.5V |
| Operating Temperature: | -40°C ~ 105°C | ||
Product Description
LM66100DCKR OR Controller IC P-Channel 1:1 IDEAL DIODE SC70-6
OR Controller P-Channel 1:1 SC-70-6
Specifications of LM66100DCKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| OR Controllers, Ideal Diodes | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | - |
| FET Type | P-Channel |
| Ratio - Input:Output | 1:01 |
| Internal Switch(s) | Yes |
| Delay Time - ON | 27 µs |
| Delay Time - OFF | 2 µs |
| Current - Output (Max) | 1.5A |
| Voltage - Supply | 1.5V ~ 5.5V |
| Applications | General Purpose |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| Base Product Number | LM66100 |
Features of LM66100DCKR
• Wide operating voltage range: 1.5 V – 5.5 V
• Reverse voltage standoff on VIN:
–6-V absolute maximum
• Maximum continuous current (IMAX): 1.5 A
• On-Resistance (RON):
– 5-V VIN = 79-mΩ (typical)
– 3.6-V VIN = 91-mΩ (typical)
– 1.8-V VIN = 141-mΩ (typical)
• Comparator chip enable (CE)
• Channel status indication (ST)
• Low current consumption:
– 3.6-V VIN Shutdown current (ISD,VIN): 120-nA (typical)
– 3.6-V VIN Quiescent current (IQ, VIN): 150-nA (typical)
Applications of LM66100DCKR
• Smart meters
• Building automation
• GPS and tracking
• Primary and backup batteries
Environmental & Export Classifications of LM66100DCKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
