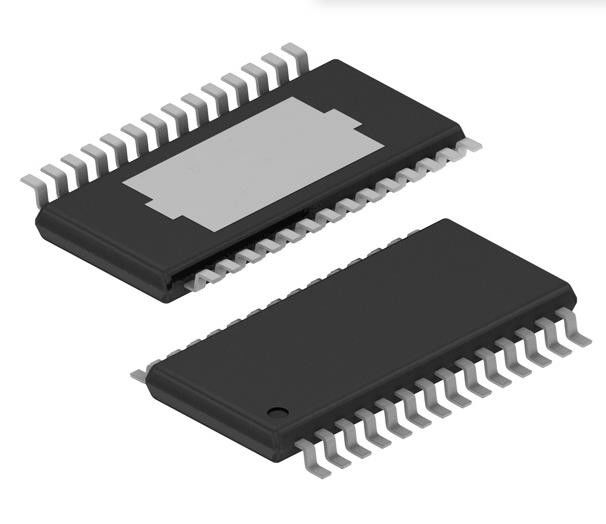

LM5175QPWPRQ1 Buck-Boost Regulator DC-DC Controller IC 28-HTSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM5175QPWPRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Phases: | 1 | Voltage - Supply (Vcc/Vdd): | 3.5V ~ 42V |
|---|---|---|---|
| Frequency - Switching: | 100kHz ~ 600kHz | Duty Cycle (Max): | - |
| Operating Temperature: | -40°C ~ 150°C (TJ) | ||
Product Description
LM5175QPWPRQ1 Buck-Boost Regulator DC-DC Controller IC 28-HTSSOP
Buck-Boost Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 28-HTSSOP
Specifications of LM5175QPWPRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 42V |
| Frequency - Switching | 100kHz ~ 600kHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-HTSSOP |
| Base Product Number | LM5175 |
Features of LM5175QPWPRQ1
• Qualified for Automotive Applications
• AEC-Q100 Qualified with the following results:
– Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature Range
– Device HBM ESD Classification Level 2
– Device CDM ESD Classification Level C4B
• Single Inductor Buck-Boost Controller for StepUp/Step-Down DC/DC Conversion
• Wide VIN Range: 3.5 V to 42 V, 60 V Maximum
• Flexible VOUT Range: 0.8 V to 55 V
• VOUT Short Protection
• High Efficiency Buck-Boost Transition
• Adjustable Switching Frequency
• Optional Frequency Sync and Dithering
• Integrated 2-A MOSFET Gate Drivers
• Cycle-by-Cycle Current Limit and Optional Hiccup
• Optional Input or Output Average Current Limiting
• Programmable Input UVLO and Soft-Start
• Power Good and Output Overvoltage Protection
• Selectable CCM or DCM with Pulse Skipping
• HTSSOP-28 Package
Applications of LM5175QPWPRQ1
• Automotive Start-Stop Systems
• Backup Battery and Supercapacitor Charging
• Industrial PC Power Supplies
• USB Power Delivery
• LED Lighting
Environmental & Export Classifications of LM5175QPWPRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
