TPS40210DGQR Dip Ic Sockets Ic Reg Ctrlr Mult Top 10msop 296-26969-6-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS40210DGQR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Output Type: | Transistor Driver |
|---|---|---|---|
| Function: | Step-Up, Step-Up/Step-Down | Output Configuration: | Positive |
| Topology: | Boost, Flyback, SEPIC | Number Of Outputs: | 1 |
| Output Phases: | 1 | Voltage - Supply (Vcc/Vdd): | 4.5V ~ 52V |
Product Description

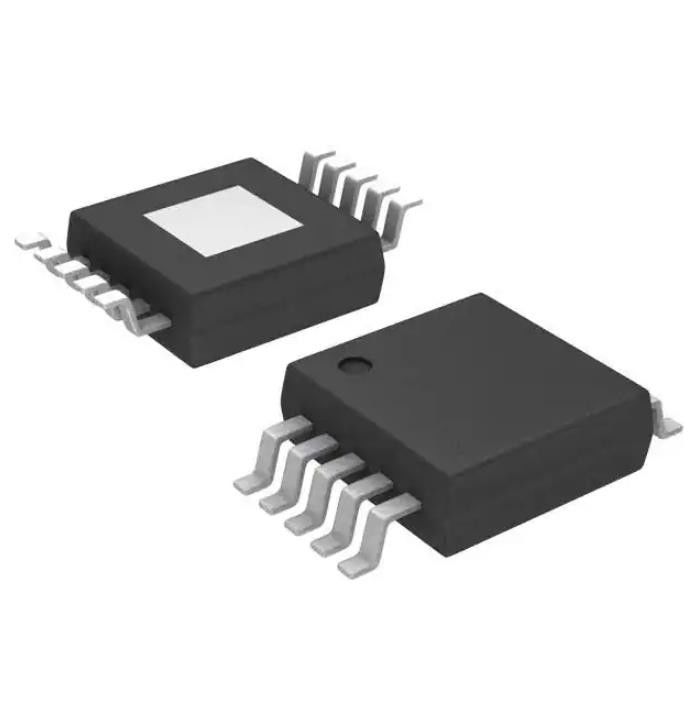

TPS40210DGQR Dip Ic Sockets Ic Reg Ctrlr Mult Top 10msop 296-26969-6-ND
Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 10-HVSSOP
Specifications of TPS40210DGQR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 52V |
| Frequency - Switching | 35kHz ~ 1MHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-HVSSOP |
| Base Product Number | TPS40210 |
Features of TPS40210DGQR
• Functional Safety-Capable
– Documentation available to aid functional safety system design
• For boost, flyback, SEPIC, LED drive apps
• Wide input operating voltage: 4.5 V to 52 V
• Adjustable oscillator frequency
• Fixed frequency current mode control
• Internal slope compensation
• Integrated low-side driver
• Programmable closed-loop soft start
• Overcurrent protection
• External synchronization capable
• Reference 700 mV (TPS40210), 260 mV (TPS40211)
• Low current disable function
• Create a custom design using the TPS4021x with the WEBENCH Power Designer
Applications of TPS40210DGQR
• LED lighting
• Industrial control systems
• Battery-powered systems
Environmental & Export Classifications of TPS40210DGQR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
