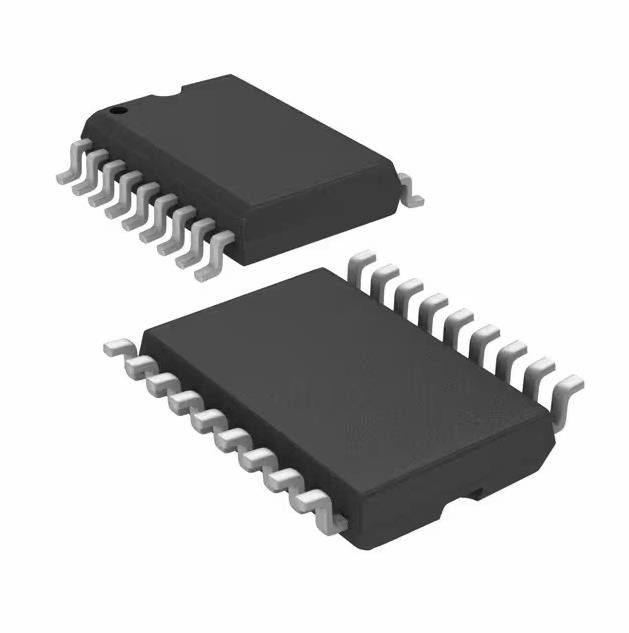

512B OTP 18SOIC Surface Mount IC MCU 8BIT Z86E0208SEG
Product Details:
| Place of Origin: | Original |
| Brand Name: | Texas Instruments |
| Certification: | REACH |
| Model Number: | Z86E0208SEG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | Z86E0208SEG | Core Processor: | Z8 |
|---|---|---|---|
| Core Size: | 8-Bit | Speed: | 8MHz |
| Peripherals: | POR, WDT | Number Of I/O: | 14 |
| RAM Size: | 61 X 8 | Voltage - Supply (Vcc/Vdd): | 4.5V ~ 5.5V |
| High Light: | OTP 18SOIC Surface Mount IC,512B OTP Surface Mount IC,Z86E0208SEG |
||
Product Description
Z86E0208SEG SMD LED Chip IC MCU 8BIT 512B OTP 18SOIC Z8 I/O 14
Z8 Z8® Microcontroller IC 8-Bit 8MHz 512B (512 x 8) OTP
ZiLOG’s Z86E02 SL1925 Microcontroller (MCU) is a One-Time Programmable (OTP) member of ZiLOG’s single-chip Z8® MCU family that allows easy software development, debug, prototyping, and small production runs not economically desirable with masked ROM versions.
Features of Z86E0208SEG
• 3.5V to 5.5V Operating Range @ 0°C to +70°C
• 4.5V to 5.5V Operating Range @ -40°C to +105°C
• 14 Input/Output Lines
• Six Vectored, Prioritized Interrupts (3 falling edge, 1 rising edge, 1 timer, 1 software)
• Program Options:
– Low Noise
– ROM Protect
– Auto Latch
– Watch-Dog Timer (WDT)
– RC Oscillator
Specifications of Z86E0208SEG
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Embedded
Microcontrollers
|
|
Mfr
|
Zilog
|
|
Series
|
Z8®
|
| Package | Tube |
|
Product
|
Z86E0208SEG
|
|
Core Processor
|
Z8
|
|
Core Size
|
8-Bit
|
|
Speed
|
8MHz
|
|
Connectivity
|
-
|
|
Peripherals
|
POR, WDT
|
|
Number of I/O
|
14
|
|
Program Memory Size
|
512B (512 x 8)
|
|
Program Memory Type
|
OTP
|
|
EEPROM Size
|
-
|
|
RAM Size
|
61 x 8
|
|
Voltage - Supply (Vcc/Vdd)
|
4.5V ~ 5.5V
|
|
Data Converters
|
-
|
|
Oscillator Type
|
Internal
|
|
Operating Temperature
|
-40°C ~ 105°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
18-SOIC (0.295", 7.50mm Width)
|
|
Base Product Number
|
Z86E0208
|
Other features of Z86E0208SEG
• One Programmable 8-Bit Counter/Timer, with 6-bit Programmable Prescaler
• WDT/Power-On Reset (POR)
• On-Chip Oscillator that accepts XTAL, Ceramic Resonance, LC, RC, or External
Clock
• Clock-Free WDT Reset
• Low-Power Consumption (50 mΩ typical)
• Fast Instruction Pointer (1.5µs @ 8 MHz)
• RAM Bytes (61)
range (−10 ̊
Environmental & Export Classifications
with avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
Additional Resources
| ATTRIBUTE | DESCRIPTION |
|---|---|
| Other Names |
269-3949
Z86E0208SEG1925-ND
|
| Standard Package | 40 |
