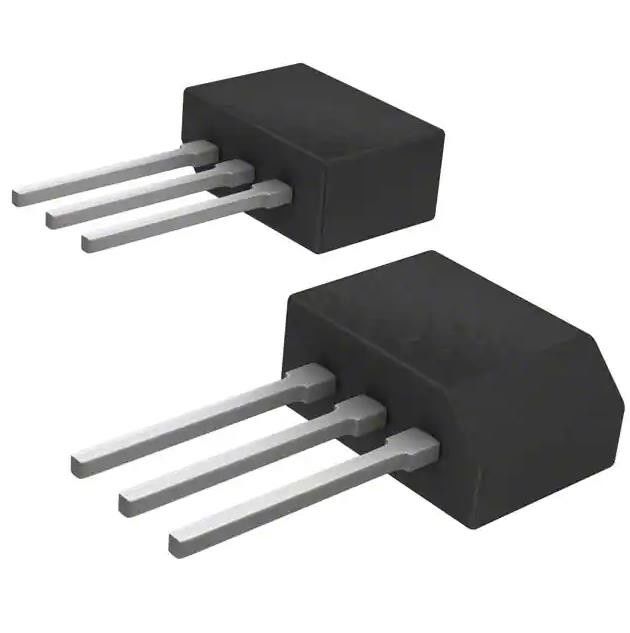

4A TO202 600V 5mA Logic Level Triac Z0405MF1AA2 Through Hole TO-202-3
Product Details:
| Place of Origin: | Original |
| Brand Name: | STMicroelectronics |
| Certification: | REACH |
| Model Number: | Z0405MF1AA2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | Z0405MF1AA2 | Voltage - Off State: | 600 V |
|---|---|---|---|
| Current - On State (It (RMS)) (Max): | 4 A | Voltage - Gate Trigger (Vgt) (Max): | 1.3 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm): | 20A, 21A | Current - Gate Trigger (Igt) (Max): | 5 MA |
| Current - Hold (Ih) (Max): | 5 MA | Operating Temperature: | -40°C ~ 125°C (TJ) |
| High Light: | 600V 5mA Logic Level Triac,4A TO202 Logic Level Triac,Z0405MF1AA2 |
||
Product Description
Z0405MF1AA2 SMD LED Chip TRIAC SENS GATE 600V 4A TO202 600V 5mA
TRIAC Logic - Sensitive Gate 600 V 4 A Through Hole TO-202-3
Different gate current sensitivities are available, allowing optimized performances when controlle directly from microcontrollers.
Features of Z0405MF1AA2
| Symbol | Value | Unit |
| IT(RMS) | 4 | A |
| VDRM/VRRM | 600 to 800 | V |
| IGT (Q1) | 3 to 25 | mA |
Specifications of Z0405MF1AA2
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Discrete Semiconductor Products
Thyristors
TRIACs
|
|
Mfr
|
STMicroelectronics
|
|
Series
|
-
|
|
Product
|
Z0405MF1AA2
|
| Package | bag |
|
Triac Type
|
Logic - Sensitive Gate
|
|
Voltage - Off State
|
600 V
|
|
Current - On State (It (RMS)) (Max)
|
4 A
|
|
Voltage - Gate Trigger (Vgt) (Max)
|
1.3 V
|
|
Current - Non Rep. Surge 50, 60Hz (Itsm)
|
20A, 21A
|
|
Current - Gate Trigger (Igt) (Max)
|
5 mA
|
|
Current - Hold (Ih) (Max)
|
5 mA
|
|
Configuration
|
Single
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
TO-202 No Tab
|
|
Supplier Device Package
|
TO-202-3
|
|
Base Product Number
|
Z0405
|
Applications of Z0405MF1AA2
• AC switching
• Home appliances
range (−10 ̊
Environmental & Export Classifications
with avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.30.0080 |
Additional Resources
| ATTRIBUTE | DESCRIPTION |
|---|---|
| Other Names |
Z0405MF1AA2
497-7700
Z0405MF 1AA2-ND
-497-7700
|
| Standard Package | 250 |
