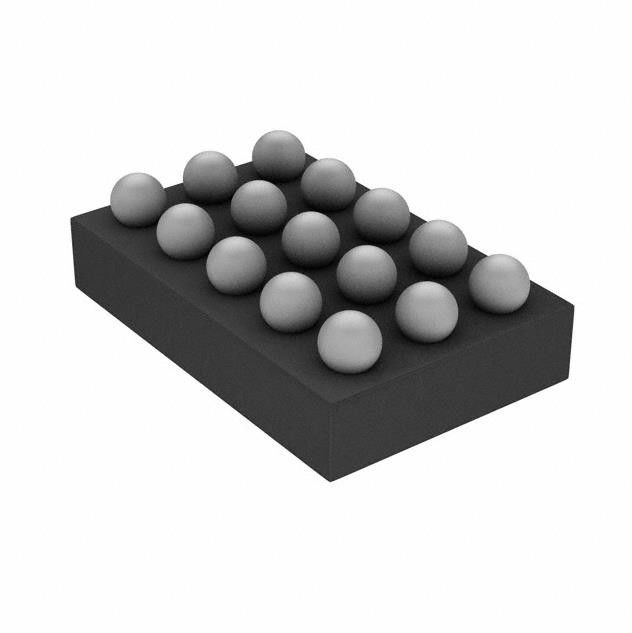

Battery Monitor IC 15DSBGA Surface Mount IC BQ27425YZFR-G1
Product Details:
| Place of Origin: | Original |
| Brand Name: | Texas Instruments |
| Certification: | REACH |
| Model Number: | BQ27425YZFR-G1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | BQ27425YZFR-G1 | Number Of Cells: | 1 |
|---|---|---|---|
| Function: | Battery Monitor | Battery Chemistry: | Lithium Cobalt Oxide |
| Interface: | I²C | Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount | Package / Case: | 15-UFBGA, DSBGA |
| High Light: | 15DSBGA Surface Mount IC,Battery Monitor IC 15DSBGA,BQ27425YZFR-G1 |
||
Product Description
BQ27425YZFR-G1 Battery Battery Monitor IC Lithium Cobalt Oxide 15-DSBGA
IC BATT FUEL GAUGE LICO2 15DSBGA
The bq27425 uses the patented Impedance Track™ algorithm for fuel gauging, and provides information such as remaining
battery capacity (mAh), state-of-charge (%), and battery voltage (mV).
Features of BQ27425YZFR-G1
Battery Fuel Gauge for 1-Series LiCoO2 battery Applications
Easy to Configure Battery Fuel Gauging Based on Patented Impedance TrackTM Technology
- Models Battery Discharge Curve for Accurate State-of-Charge Report
- Automatically Adjusts for Battery Aging, Battery Self-Discharge,and Temperature/Rate Inefficiencies
- Low-Value Integrated Sense Resistor (10 mΩ typical)
Resides on System Main Board
- Works with Embedded or Removable Battery Packs
- Integrated LDO allows devices to be powered directly from battery pack
Microcontroller Peripheral Provides:
- Accurate Battery Fuel Gauging
- Internal Temperature Sensor for Battery Temperature Reporting
- Configurable Level of State-of-Charge (SOC) Interrupts
Specifications of BQ27425YZFR-G1
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Battery Management
|
|
Mfr
|
Texas Instruments
|
|
Series
|
Impedance Track™
|
| Package | Tape & Reel (TR) |
|
Product
|
BQ27425YZFR-G1
|
|
Function
|
Battery Monitor
|
|
Battery Chemistry
|
Lithium Cobalt Oxide
|
|
Number of Cells
|
1
|
|
Fault Protection
|
-
|
|
Interface
|
I²C
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
15-UFBGA, DSBGA
|
|
Supplier Device Package
|
15-DSBGA
|
|
Base Product Number
|
BQ27425
|
Other features of BQ27425YZFR-G1
I2CTM for Connection to System Microcontroller Port
Small 15-pin 2,69×1,75 mm,0.5 mm pitch CSP package
range (−10 ̊
Environmental & Export Classifications
with avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
APPLICATIONS of BQ27425YZFR-G1
• Feature Phones
• Smart Phones
• PDAs
• Digital Still and Video Cameras
• Handheld Terminals
• MP3 or Multimedia Players
